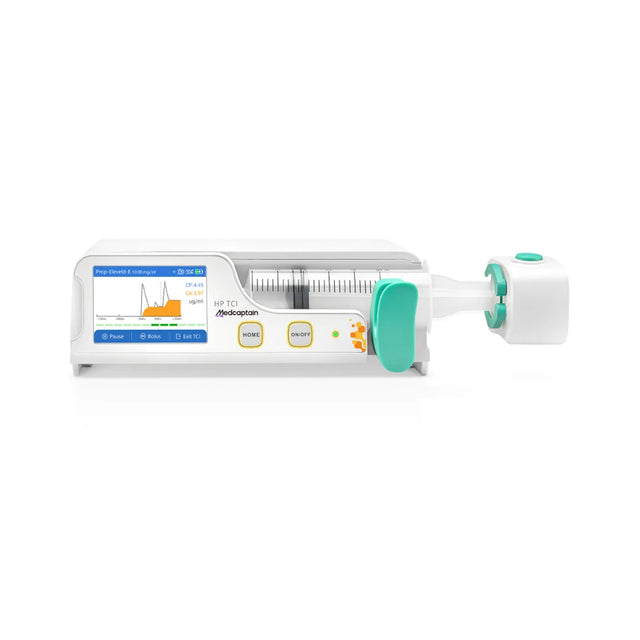

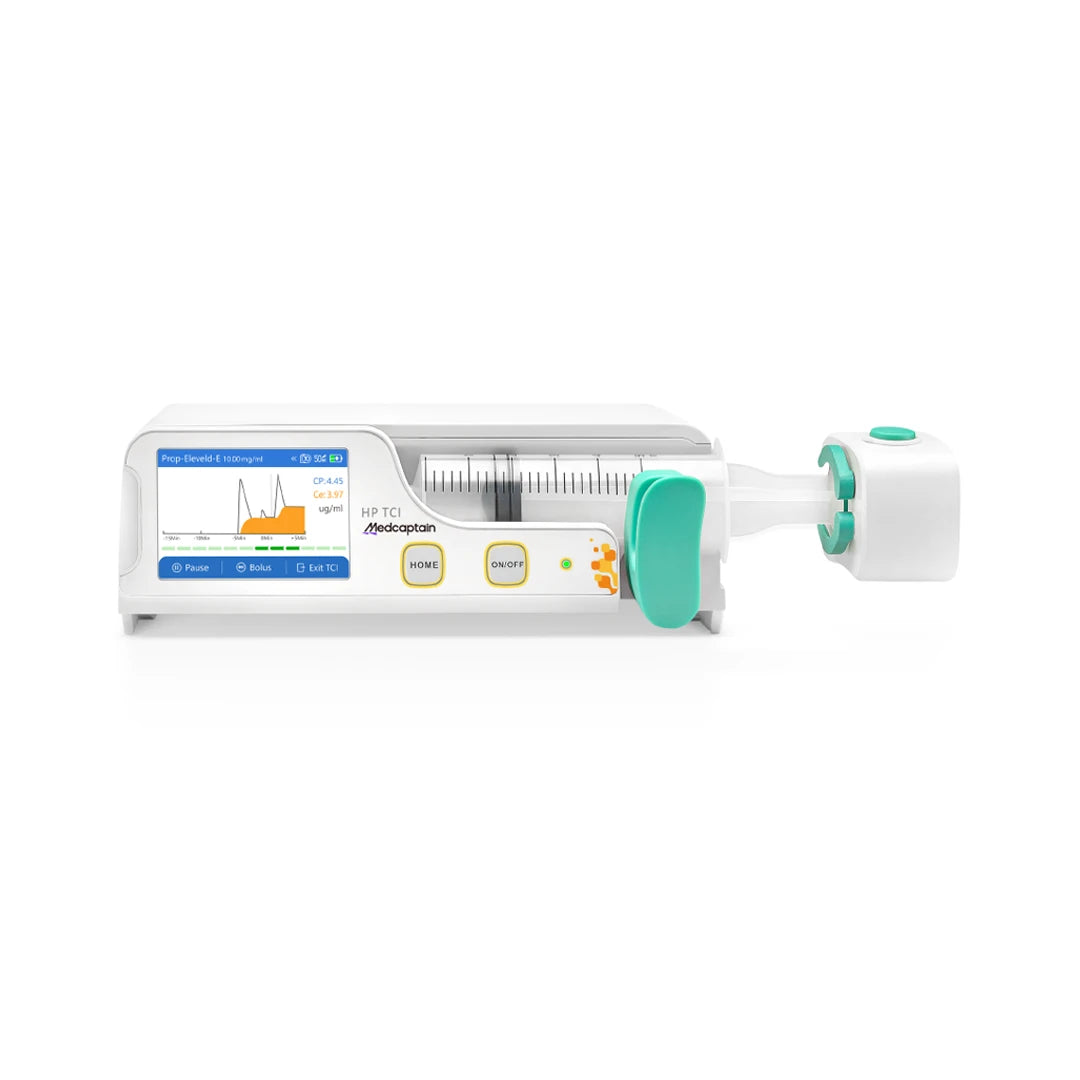

MedCaptain HP30 TCI Infusion Syringe Pump with Patient Controlled Analgesia
MedCaptain HP30 TCI Infusion Syringe Pump with Patient Controlled Analgesia - Without WiFi Module may not be in stock. Please call us for ETA before purchasing.
Couldn't load pickup availability
MedCaptain HP30 TCI Infusion Syringe Pump with Patient Controlled A...
From
$3,399.00 ex GST ($3,738.90 inc GST)To
$3,519.00 ex GST($3,870.90 inc GST)HP TCI Syringe Pump: The Ultimate Anaesthesiology Companion
The HP TCI Syringe Pump stands as an indispensable tool for anaesthesiologists, merging cutting-edge technology with unmatched precision to deliver an optimal anaesthesia experience. Renowned as an anaesthesiologist's best partner, this syringe pump integrates an advanced Target Controlled Infusion (TCI) and Patient Controlled Analgesia function, providing tailored anaesthesia solutions for a broad spectrum of patients.
Advanced Features for Superior Performance
- High-Definition Medical Grade Screen: A large, easy-to-read display showcases vital information clearly, ensuring critical data is always within sight during procedures.
- Precise Drug Delivery: The pump is governed by a reliable algorithm that accurately controls drug concentration, offering extra bolus delivery during TCI to meet specific patient needs.
- Exceptional Infusion Accuracy: With an infusion accuracy of <=+-2%, the HP TCI guarantees precise medication delivery, allowing for maximum efficacy and patient safety.
- Versatile Patient Application: Designed to cater to a wide age and weight range, the HP TCI is equipped with the Eleveld model, making it suitable for patients from neonates to the obese, ensuring comprehensive coverage across all demographics.
- Patient Control Administrator: Enhancing patient involvement in their own care, the HP30 includes a Patient Control Administrator (PCA) feature. This allows patients to self-administer pain relief medication within preset limits, providing them with control over their comfort and contributing to a more satisfactory care experience.
Comprehensive Data Support
The HP TCI Syringe Pump is backed by extensive patient and blood sample data across various models:
- Marsh, Schnider, and Eleveld Models: These models support a wide age range (from 27 weeks to 88 years) and weight range (0.68 to 160 kg), with Eleveld featuring an impressive dataset of 15,433 blood samples and 18 model parameters, underscoring its versatility and reliability.
Drug Compatibility and Protocols
This advanced syringe pump supports multiple drug models, including Propofol, Dexmedetomidine, Remifentanil, Sufentanil, Alfentanil, and Fentanyl, among others. It is compatible with the HP-80 MRI infusion workstation, further enhancing its utility in a variety of clinical settings. Each drug model is detailed for plasma and effect site compatibility, providing anaesthesiologists with comprehensive options for protocol customization.
High Flow Rate for Demanding Situations
The HP TCI can achieve a maximum flow rate of 2000mL/h, catering to the most demanding clinical situations and ensuring rapid response when required.
Reliability and Assurance
Anaesthesiologists can rely on the HP TCI Syringe Pump not just for its technological prowess but also for the peace of mind it offers, with a design that emphasizes patient safety through features like overflow protection and an antibacterial filter.
In summary, the HP TCI Syringe Pump is more than a medical device; it's a vital extension of the anaesthesiology team. Its precision, adaptability, and comprehensive data support system redefine the standards of patient care in anaesthesia, making it an essential asset for any medical facility seeking to enhance its anaesthetic practices.
| Specifications | |
| Dimension: | 25875152mm WD) |
| Weight | 1.7kg including battery |
| Screen | 3.0 inch LCD touch screen, brightness 10 level adjustable |
| Classification | Type CF, Class I, IP33 |
| Compatible syringe | Various brands of 2ml, 3ml, 5ml, 10ml, 20/30ml, 50/60ml syringes compliant with national standards |
| Standard accessories | Power cord, Handle, Pole clamp |
| Basic Parameter | |
| Infusion mode | Ratee Mode, Time Mode, Weight Mode, Sequence Mode, Trapezia Mode, Micro Mode, LoadingDose Mode, TIVA Mode,TCI Mode and PCA Mode(Optional) |
| Infusion rate range | 0.10-60.00 (ml/h) (2ml syringe size) |
| 0.10-90.00 (ml/h) (3ml syringe size) | |
| 0.10-150.0 (ml/h) (5ml syringe size) | |
| 0.10-300.0 (ml/h) (10ml syringe size) | |
| 0.10-600.0 (ml/h) (20ml syringe size) | |
| 0.10-900.0 (ml/h) (30ml syringe size) | |
| Increment | 0.10-2000.0 (ml/h) (50/60ml syringe size) |
| 0.01-99.99ml/h (increments 0.01ml/h) | |
| 100-999.9ml/h (increments 0.1ml/h) | |
| 1000-2000ml/h (increments 1ml/h) | |
| VTBI range | 0.1-9999.99ml |
| Preset time | 00:00:01-99:59:59 (increments 1s) |
| Accumulated volume | 0.0-99999.99ml |
| Accuracy | ≤±2% |
| KVO rate | 0.1-5ml/h adjustable, step by 0.01ml/h |
| Bolus rate | 0.10-60.00 (ml/h) (2ml syringe size) |
| 0.10-90.00 (ml/h) (3ml syringe size) | |
| 0.10-150.0 (ml/h) (5ml syringe size) | |
| 0.10-300.0 (ml/h) (10ml syringe size) | |
| 0.10-600.0 (ml/h) (20ml syringe size) | |
| 0.10-900.0 (ml/h) (30ml syringe size) | |
| 0.10-2000.0 (ml/h) (50/60ml syringe size) | |
| 3 bolus ways selectable | Automatic/Manual/Rapid quantitative Bolus |
| Purge rate | 60.00 (ml/h) (2ml syringe size) 90.00 (ml/h) (3ml syringe size) 150.0 (ml/h) (5ml syringe size) 300.0 (ml/h) (10ml syringe size) 600.0 (ml/h) (20ml syringe size) 900.0 (ml/h) (30ml syringe size) 2000.0 (ml/h) (50/60ml syringe size) |
| Occlusion level | 12 levels selectable, 150mmHg-975mmHg |
| Special Fusion | |
| Recent therapy | 20 recent therapies are recorded and can be used for rapid infusion |
| Rate change during infusion | Infusion rate can be changed anytime during infusion, not necessary to stop infusion before change |
| Relay function | Continuous intusion among any pump within docking station at any mode to guarantee non-stoo therapies tor sensitive drugs |
| Screen lock | Both Manual screen lock and Auto screen lock are available. |
| Drug library | Up to 5000 drugs can be built in |
| Repeat alarming | Alarm sounds again in 2 minutes, if there is still alarm after alarm is mute |
| Event recording | Maximum 2000 events can be stored and play back |
| Sound volume | 5 levels selectable |
| Power supply switching | When AC/DC power supply is cut off, the infusion automatically switch to internal battery supply |
| Power Supply | |
| AC power | 100-240, 50/60 Hz, power consumption 45VA |
| External DC power | DC 12 V, 2.5A |
| Internal battery | Lithium battery 11.34V 2900mAh |
| Battery duration | 10 hours @5ml/h with a new battery |
| Charging time | Min 4 hours when power off |
| Alarm | |
| Visual and acoustic alarm | Infusion End, BAT Empty, Patient Side OCCL, Infusion End KVO Start, KVO End, Relay Failed, Syringe Empty, Holder Error, Drive Head ERR, Standby End, Infusion Near End, No Battery, No AC Power, BAT Low, Reminder Alarm, Syringe Near Empty, PCA 1h overrun, and PCA 4h overrun. |
| Connectivity | |
| WiFi/Wired | To connect central infusion monitoring system, nurse caller, voice communication and infusion pump information network |
| Barcode scanning | Patient information input by barcode scanning |
| Data interface | Supported, USB, RJ45 |
| Protocol | HL7 |
| Mounting | |

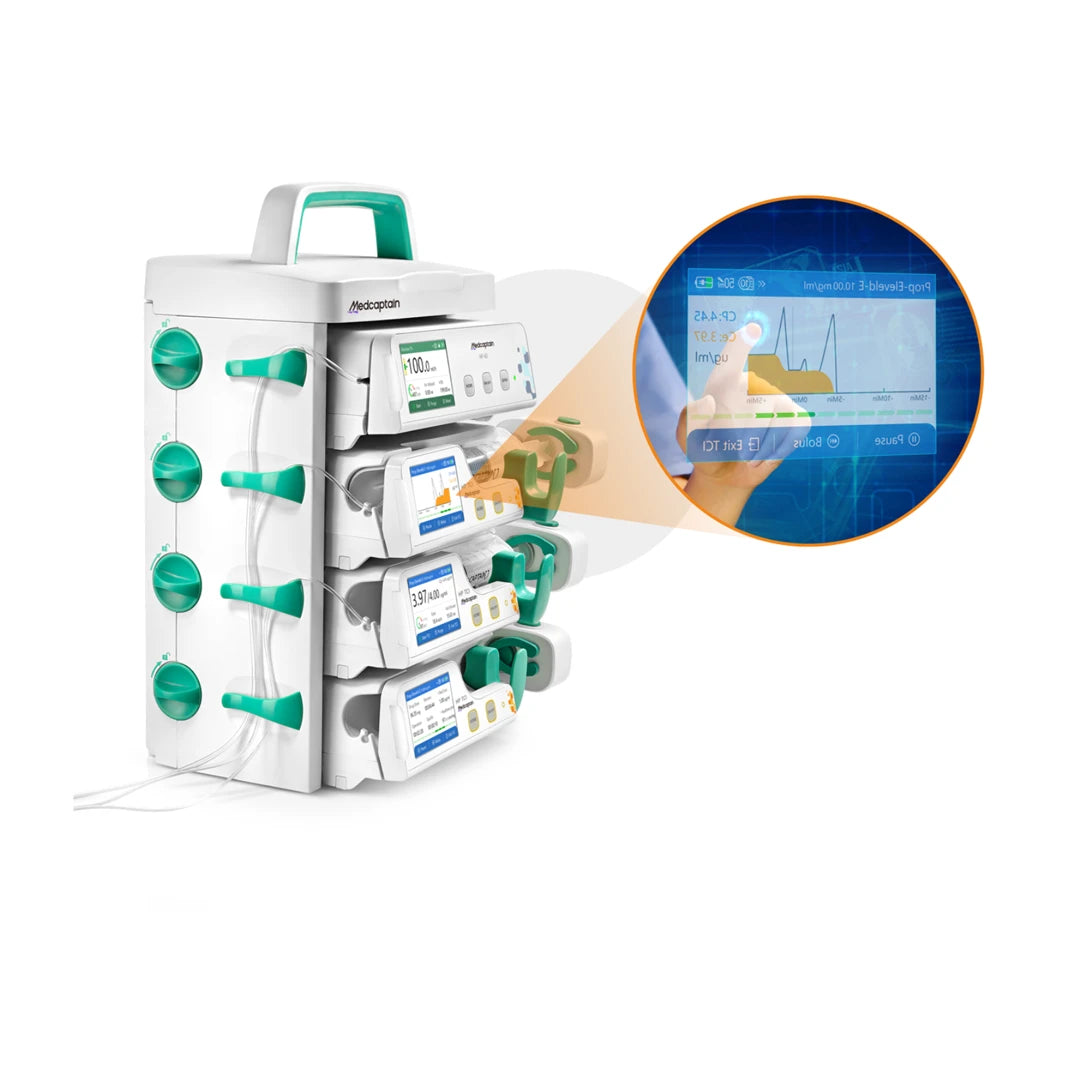

| Inside docking station | Supported |
| Between pumps | Stackable between any HP series syringe I infusion pump produced by Medcaptain |
| Handle | Available |
| Pole clamp direction | Can be mounted at different directions, 90% 180°/270°/360° |
| Safety Requirement | |
| Operating conditions | Temperature: 5°C to 40°C Humidity:15% to 95% RH Pressure altitude: 57.0kPa-106.0kPa |
| Storage conditions | Temperature: -20°C to +55°C Humidity: 10% to 93% RH Pressure altitude: 22.0kPa-107.4kPa |
>
