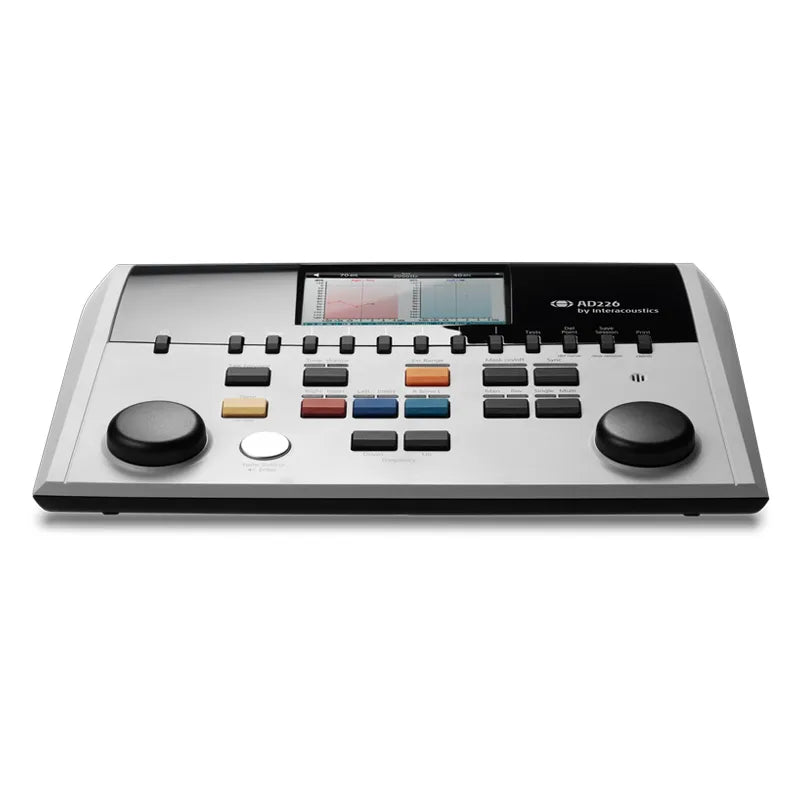

Interacoustics AD226 Audiometer Air and Bone Conduction
Interacoustics AD226 Audiometer Air and Bone Conduction may not be in stock. Please call us for ETA before purchasing.
($5,773.90 inc GST)
Couldn't load pickup availability
Warranty Information
Warranty Information
Device - 2 Years. Accessories - 90 Days.
Interacoustics AD226 Audiometer Air and Bone Conduction
($5,773.90 inc GST)
The AD226 is made to perform routine air and bone conduction threshold audiometry. For advanced audiometry, you can add several hearing tests to the test battery with the extended license.
Key Features
- Storage space for 500 patients
- Portable: option to run on AA batteries
- Lightweight with optional carrying bag
- Air and bone conduction
- Masking
- Stenger test
- Modified Hughson-Westlake
- Alternate binaural loudness balance (ABLB) test
Stationary or Portable - You Decide!
The AD226 is a powerful and fully portable hybrid audiometer.
Portable
The AD226 is designed for efficient air and bone conduction threshold audiometry, with additional features for broader diagnostic needs. Weighing just 1.3 kg (2.9 lbs) and measuring 30x23x9 cm (12x9x4 in), it's easy to transport and fits well in small spaces.
Functional
Featuring an ergonomic design, the AD226 has a 4.3-inch high-resolution colour display that ensures clear, easy-to-read audiograms. Its intuitive keypad layout enables quick adaptation, maintaining speed and efficiency.
Versatile
The AD226 functions as both a standalone and PC-integrated audiometer. It works independently or can be paired with the optional Diagnostic Suite software for additional functionality.
Professional
Despite its compact size, the AD226 maintains a professional appearance and provides PC-like functionality without the PC. Upload multiple patient data onto the AD226 before taking it on the road, then store test results to each specific client and download the information to the database program of your choice when you get back to the office.
Interacoustics Diagnostic Suite Software
| AD226 Technical Specifications | |||
| Safety Standards | IEC 60601-1:2005, ES60601-1:2005/A2:2010, CAN/CSA-C22.2 No 60601-1- :2008 Class I, Type B applied parts. | ||
| EMC Standard | IEC 60601-1-2:2007 | ||
| Medical CE-mark | Yes | ||
| Audiometer Standards | Tone: IEC 60645-1:2012/ANSI S3.6:2010 Type 3 | ||
| Calibration | Calibration information and instructions is located in the AD226 Service manual | ||
| Air Conduction | TDH39: | ISO 389-1 1998, ANSI S3.6-2010 | |
| DD45: | ANSI S3.6 2018 / ISO 389-1 2017 | ||
| E.A.R Tone 3A: | ISO 389-2 1994, ANSI S3.6-2010 | ||
| IP30 | ISO 389-2 1994, ANSI S3.6-2018 | ||
| DD450 | ANSI S3.6 – 2018 | ||
| DD65 v2 | ANSI S3.6 2018 | ||
| Bone Conduction | B71: Placement: | ISO 389-3 1994, ANSI S3.6-2010 Mastoid | |
| Effective Masking | ISO 389-4 1994, ANSI S3.6-2010 | ||
| Transducers | TDH39 | Headband Static Force 4.5N ±0.5N | |
| DD45 | Headband Static Force 4.5N ±0.5N | ||
| B71 Bone | Headband Static Force 5.4N ±0.5N | ||
| DD450 | Headband Static Force 10N ±0.5N | ||
| E.A.R Tone 3A: | |||
| IP30 | |||
| DD65 v2 | Headband Static Force 11.5N ±0.5N | ||
| Patient Response switch | One push button. | ||
| Patient communication | Talk Forward (TF) | ||
| Special tests/test battery (only extended version) | Stenger | ||
| ABLB | |||
| Langenbeck (tone in noise) | |||
| SISI | |||
| Auto threshold: | |||
| Hughson Westlake | |||
| Bekesy | |||
| Inputs | Tone, Warble Tone +5%, 5Hz (true sine wave frequency modulation). | ||
| Outputs | Left, Right, Bone L+R, Insert Phones, Insert Masking | ||
| Stimuli | |||
| Tone | 125-8000Hz. | ||
| Warble Tone | 5Hz sine +/- 5% modulation | ||
| Masking | Narrow band noise: IEC 60645-1 2012, 5/12 Octave filter with the same centre frequency resolution as pure Tone. Synchronous masking: Locks channel 2 attenuator to channel 1 attenuator. | ||
| Presentation | Manual or Reverse. Single pulse. Multiple pulses 50-5000 msec. on/off. | ||
| Intensity | AC: -10 to 120 dB HL BC: -10 to 80 dB Available Intensity Steps is 1, 2 or 5dB Extended range function: If not activated, the Air Conduction output will be limited to 20 dB below maximum output. Extended range only available when mains powered | ||
| Frequency Range | 125Hz to 8kHz. 125Hz, 250Hz, 500 Hz, 750Hz, 1500Hz or 8kHz may freely be deselected | ||
| Internal Storage | 500 clients | ||
| Data connections (sockets) for connection of accessories | 1 x USB A for keyboard or printer 1 x USB B for PC connection (compatible with USB 1.1 and later) | ||
| External devices (USB) | Standard PC keyboard (for data entry) Supported printers: Please contact local distributer for a list of approved PC printers. | ||
| Display | 4,3” (480x278) TFT color display. | ||
| Compatible software (optional) | Diagnostic Suite - Noah, OtoAccess® and XML compatible | ||
| Dimensions (LxWxH) | 30x23x9cm, 12x9x4 inches. | ||
| Weight | 1.3kg / 2.9lb | ||
| Power supply | 5VDC-max 1.6A UE24 type only | ||
| Batteries | 4x1.5V/1.2V Alkaline/NiMH Type AA, Note: When the instrument is battery operated the maximum stimuli output level is reduced 20dB | ||
| Operation environment | Temperature: 15-35°C Re. Humidity: 30-90% Non condensing Ambient pressure: 98-104 kPa | ||
| Transport and storage | Transport temperature: -20-50°C Storage temperature: 0-50°C Re. Humidity: 10-95% Non condensing | ||
| Warm up time | Approx. 1 minute | ||
Detailed specifications available on the user manual.
