Interacoustics PA5 Audiometer Pediatric Testing
Interacoustics PA5 Audiometer Pediatric Testing may not be in stock. Please call us for ETA before purchasing.
($3,025.00 inc GST)
Couldn't load pickup availability
Warranty Information
Warranty Information
Device - 2 Years. Accessories - 90 Days.

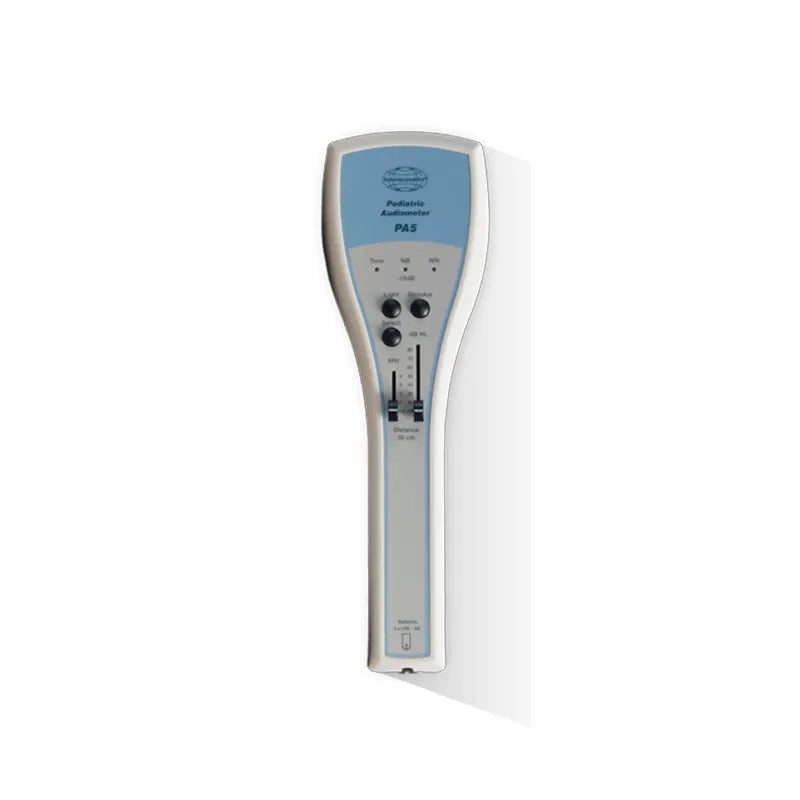

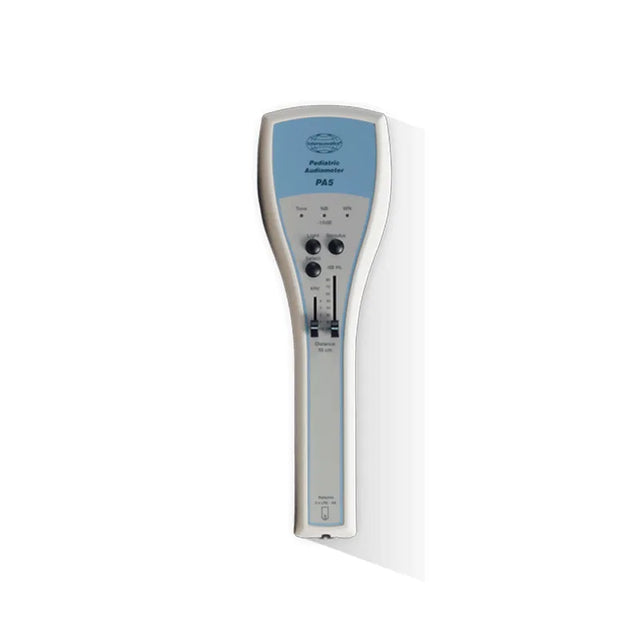

Interacoustics PA5 Audiometer Pediatric Testing
($3,025.00 inc GST)
The PA5 is a free field audiometer designed for trained healthcare professionals involved in testing young children. It features onehanded operation, silent buttons and a variety of light and sound stimuli.
- Conditioned Orientation Response (COR)
- Visual Reinforcement Audiometry (VRA)
- Auropalpebral Reflex (APR)
Conditioned Orientation Response
The PA5 is typically used in pairs, with one in each hand, to elicit head-turn responses and provide visual reinforcement during COR tests. The PA5’s one-handed controls allow easy adjustments of frequency and intensity, making testing quick, flexible, and comfortable.
Optional TDH Single Headphone
For cooperative children, a single TDH39 headphone can be connected to the PA5 to obtain audiometric thresholds. The PA5 automatically adjusts to the correct calibration for TDH39 when the headphones are attached.
Silent Presentation Buttons
Both light and sound stimuli are controlled by silent buttons, allowing simultaneous presentation by pressing both buttons with a single finger. This makes the PA5 versatile for COR, VRA, and APR testing.
Improved Sensitivity
The PA5 offers white noise, warble, and narrow-band stimuli options. White noise is particularly effective in evoking responses during the early months of life.
More Benefits
- Flashing Light Stimulation
- TDH39 Audiometric Headphone (Optional)
- Robust, Lightweight
- Standard AA Batteries
- Automatic Battery Switch
- Automatic Battery Indication
| Specification | Details |
| Standards | IEC 60645-1, Type 5 |
| Sound Pressure Level | ISO 389-7 (loudspeaker), ISO 389-1 (headphone) |
| Medical CE-mark | The CE-mark indicates that Interacoustics A/S meets the requirements of Annex II of the Medical Device Directive 93/42/EEC. Approval of the quality system is made by TÜV – identification no. 0123. |
| Power | Batteries: 3 x AA, LR6 or Mignon (alkaline or rechargeable NiMH/NiCa) |
| Frequencies | 500, 1000, 2000, 3000, 4000 Hz |
| Stimuli | Warble Tone, Narrow Band (NB), White Noise (WN) |
| Intensities at 50 cm | 30-80 dB HL in 10 dB steps (Warble Tone and WN), 20-70 dB HL (NB) |
| Intensities at 16 cm | Increases indicated intensity by 10 dB |
| Warble Frequency | 5 Hz ± 5% |
| Stimulation using TDH39S | Pure Tone: 500, 1000, 2000, 3000 and 4000 Hz. Intensities of 30 – 80 dB (independent calibration applied when TDH39 is connected) |
| Sound Source | Built-in loudspeaker or TDH39S headphone (independent calibration registers) |
| Light Stimulation | 3 LEDs in a triangle, flash speed 5 Hz |
| Tone and Light Stimulation | Silent touch switch |
| Battery Life | Alkaline battery type: 12 months (off), 10 hours (80 dB tone), 4 hours (80 dB tone + light) |
| Dimensions | 25 x 7 x 5 cm / 9.8 x 2.7 x 2 inches |
| Weight | 0.36 kg (including batteries) |
Detailed specifications available in the user manual.
