Alltion AM6000 Series ENT Microscope

The Alltion 6000 Series ENT Surgical Microscope is a state-of-the-art instrument designed to meet the exacting needs of ENT professionals. It boasts four unique features that set it apart from the competition, ensuring unparalleled ease of use and functionality.

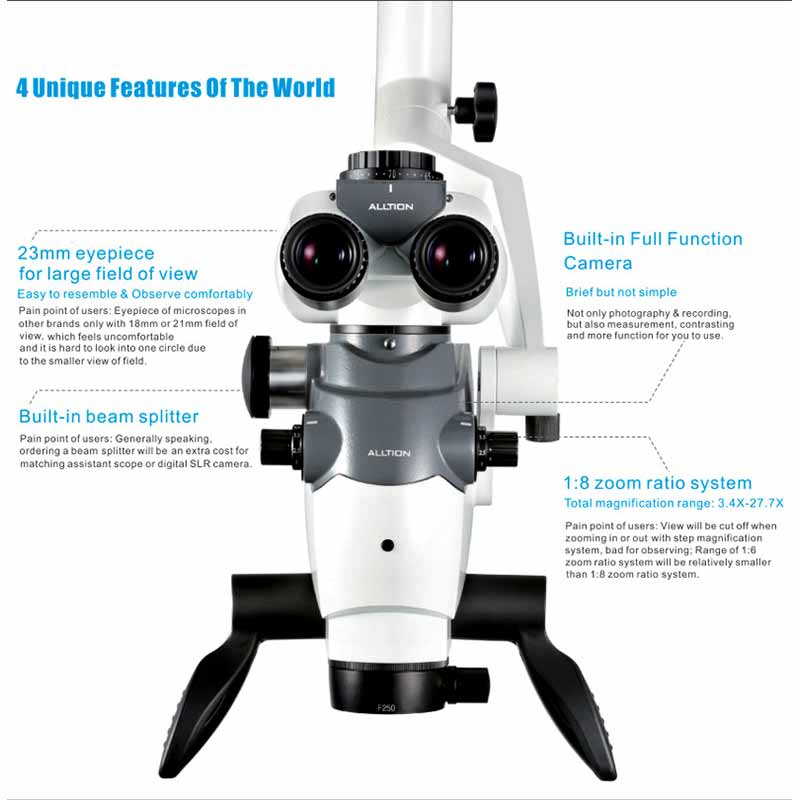

One of its standout features is the 23mm eyepiece, offering a large field of view that dramatically improves the user experience. This design addresses a common pain point among professionals who have found the 18mm or 21mm eyepieces of other brands uncomfortable due to their smaller field of view. The Alltion 6000 Series allows for a more comfortable observation experience, enabling users to easily look into one circle without the discomfort associated with narrower fields.

Incorporating a built-in beam splitter is another innovative feature of this microscope. Typically, acquiring a beam splitter incurs additional costs for those wishing to attach an assistant scope or a digital SLR camera. The Alltion 6000 Series eliminates this hassle, offering built-in functionality that saves time and money.

The microscope also offers an optional built-in Full Function Camera, not available in all models. This feature goes beyond mere photography and recording; it includes measurement, contrasting, and more, enabling a wide range of uses. The camera’s functional parameters—such as exposure, AE light, gain, R, B, saturation, contrast, and sharpness—are fully adjustable by the operator, providing flexibility and control. Additionally, users can compare still images and live video directly through the microscope, enhancing diagnostic and educational applications.

A notable technical advancement is the 1:8 zoom ratio system, offering a total magnification range of 3.4X-27.X. This system addresses the common user frustration with step magnification systems, where the view is often cut off during zooming. The Alltion's wider zoom ratio ensures a seamless observation experience, with a balance that is easily adjustable via a simple knob turn.

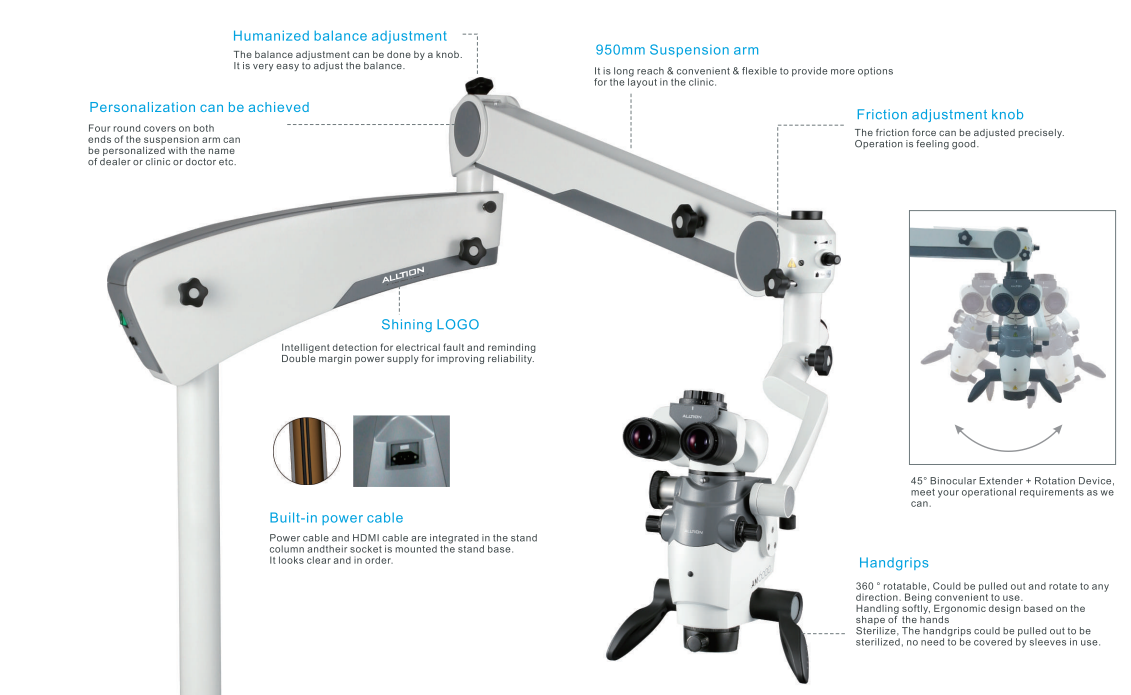

Designed with ergonomics in mind, the Alltion 6000 Series features handgrips that are 360° rotatable and extendable in any direction, making it exceptionally convenient to use. These handgrips can also be detached for sterilization, enhancing hygiene without the need for additional covers. The microscope is equipped with a friction adjustment knob and a 950mm suspension arm, offering extensive reach and flexibility for various clinic layouts.

Durability and environmental responsibility are key aspects of the Alltion 6000 Series design. The carrier arm cover is made of eco-friendly PC materials, providing superior strength compared to ABS, ensuring the microscope's longevity. Internal parts are primarily crafted from 6061 aluminum alloy, contributing to the product's robust feel and sophisticated appearance. Additionally, an anti-collision pin prevents damage when the arms are folded or closed, and the compact design allows for easy movement and space-saving storage.

The microscope's illumination system is equally impressive, featuring a built-in LED lamp with exceptional heat dissipation, ensuring a lifespan of 60,000 hours or more. The system offers excellent dimming linearity, maintaining consistent illumination even at very low brightness levels.

For capturing images or recordings, the Alltion 6000 Series provides three convenient options: a wireless foot pedal, a mouse, or a handgrip button, offering flexibility to suit any user's preference. Furthermore, the microscope includes various illuminating modes, enhancing visibility across a range of procedures.

Overall, the Alltion 6000 Series ENT Surgical Microscope represents a significant advancement in medical imaging technology, offering unmatched functionality, comfort, and durability. Its thoughtful design and innovative features make it an invaluable tool for ENT professionals seeking to enhance their diagnostic and surgical capabilities.
