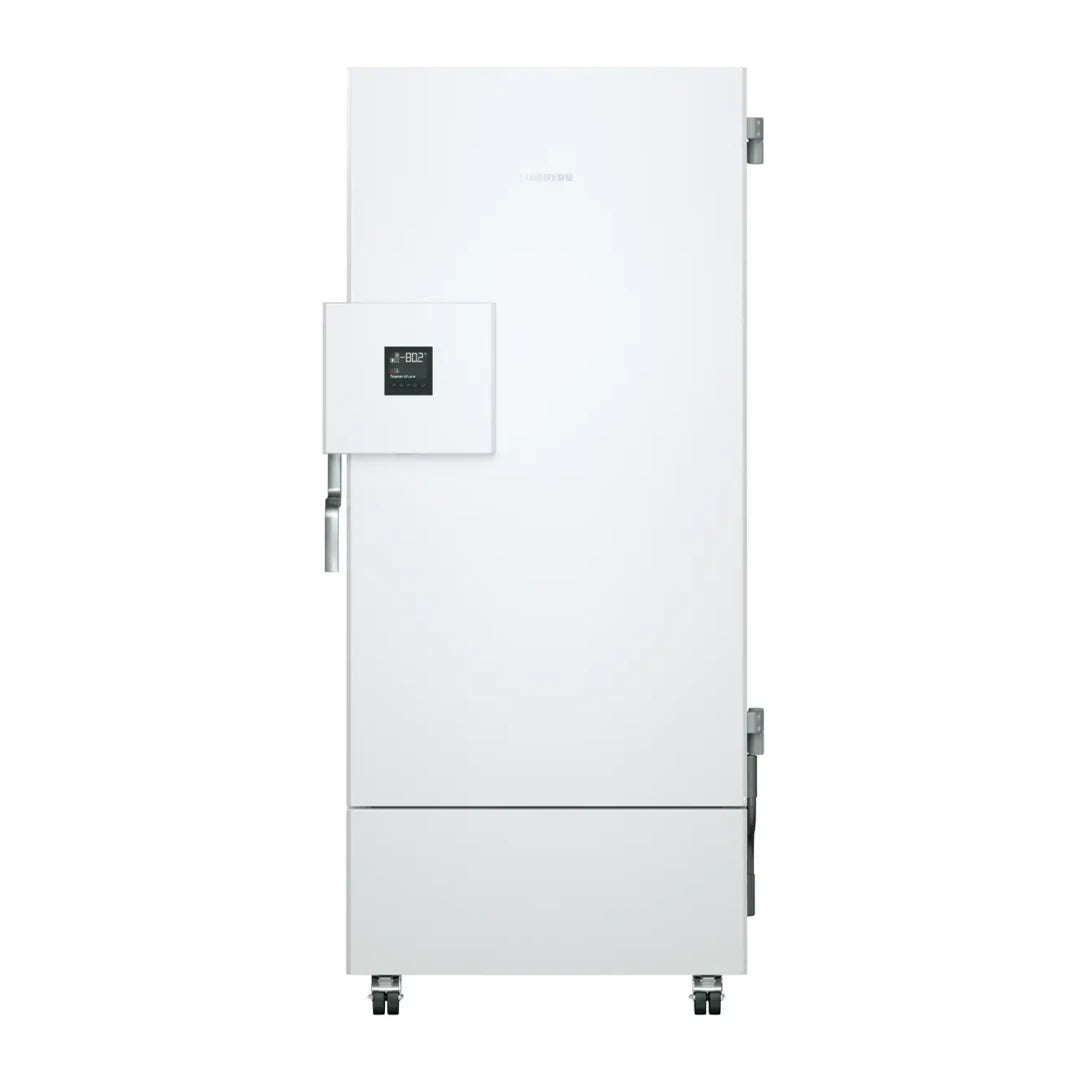

Liebherr SUFsg 5001 Ultra Low Temperature Medical Laboratory Freezer - 491 Litre
Liebherr SUFsg 5001 Ultra Low Temperature Medical Laboratory Freezer - 491 Litre may not be in stock. Please call us for ETA before purchasing.
Couldn't load pickup availability
Warranty Information
Warranty Information
5 years.
The Liebherr SUFsg 5001 MediLine Ultra-Low Temperature Freezer is a high-capacity, high-performance solution engineered for the secure storage of highly sensitive substances in laboratory and research environments. Delivering exceptional energy efficiency, robust construction, and precise ultra-low temperature control, it ensures maximum protection and reliability for critical applications.
- Ultra-Low Temperature Range (-40 °C to -86 °C): Provides precise and stable temperature control for the safe storage of sensitive biological samples, pharmaceuticals, and research materials.
- High Temperature Stability: Maintains consistent internal conditions even at extreme temperatures, ensuring long-term integrity of stored contents.
- Advanced Monitoring System: Three-stage monitoring system includes alarms for temperature deviations, door openings, and power failures, ensuring immediate awareness of critical events. Expandable options such as CO₂ emergency cooling and online monitoring provide additional protection.
- Battery-Backed Alarm System: Integrated 12V battery ensures monitoring and alarm functions remain active during power outages, maintaining protection and notifications in critical situations.
- Efficient Refrigeration System: Utilises high-quality compressors and components to deliver reliable cooling performance while reducing energy consumption and operating costs.
- Environmentally Friendly Refrigerants: Uses natural refrigerants R600a and R290, offering low environmental impact while maintaining high efficiency and future-proof compliance.
- Energy Efficient Operation: Consumes approximately 7.9 kWh per 24 hours while delivering powerful ultra-low temperature performance.
- High-Capacity Storage: Offers 477L net capacity with support for up to 352 trays, making it ideal for high-density sample storage in demanding environments.

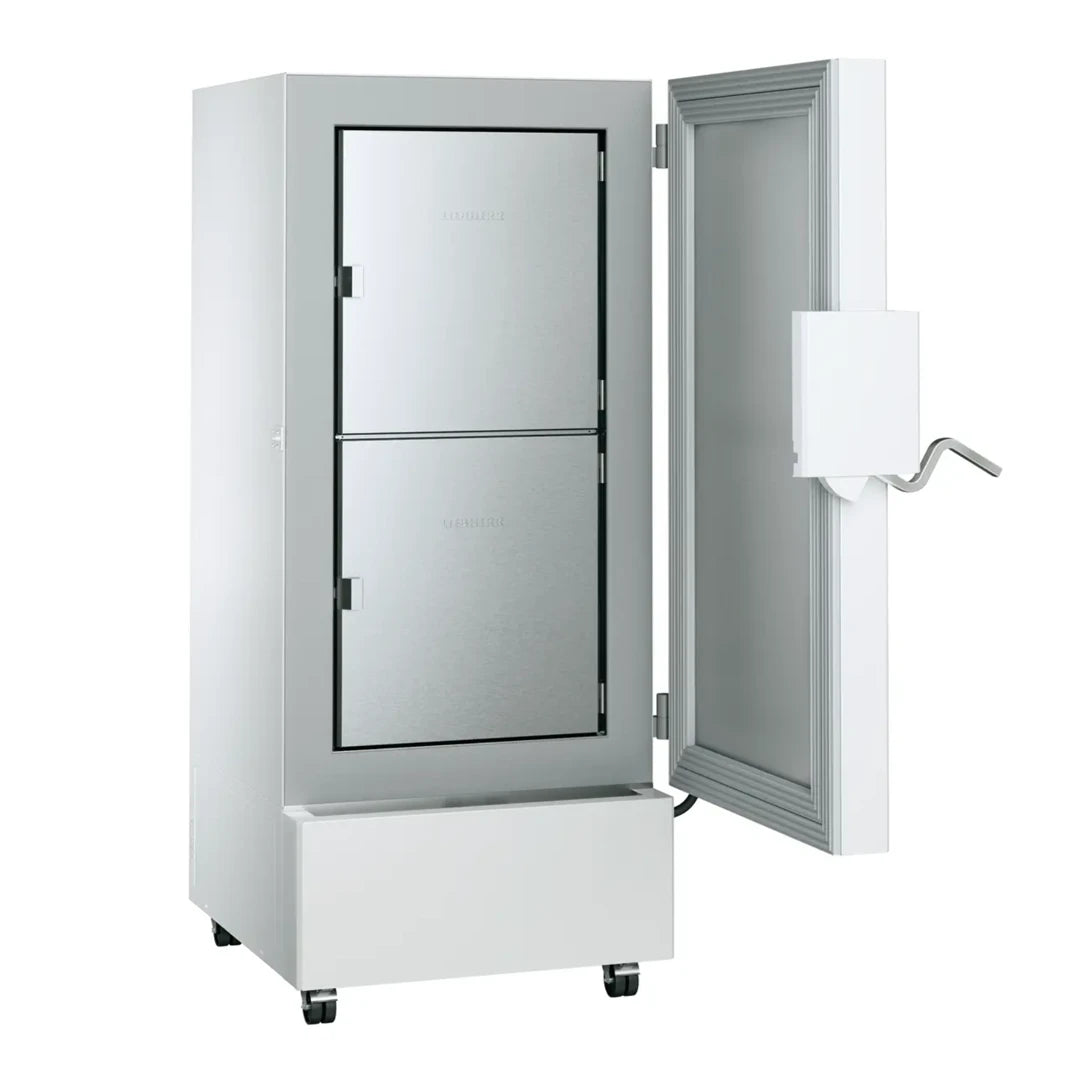

- Foamed Inner Doors: Internal insulated doors improve temperature stability, reduce cold air loss, and enhance energy efficiency.
- Alarm Test Function: Allows verification of both internal and external alarm systems without affecting cooling performance, ensuring reliability of safety systems.
- Comprehensive Safety Features: Includes a protected mains switch with key lock to prevent accidental shutdown or tampering.
- Robust Laboratory Construction: Built for durability and long-term reliability in demanding laboratory and research environments.
- Optimised Cooling Performance: Designed for efficient pull-down and extended warm-up times, helping protect samples during loading and power interruptions.
The SUFsg 5001 MediLine combines ultra-low temperature precision, advanced monitoring, and industry-leading efficiency, making it an ideal solution for laboratories, research facilities, and healthcare institutions requiring dependable long-term storage of critical materials.
| Exterior dimensions: height/width/depth | 196.6 / 92 / 108.2 cm |
| Adjustable temperature range | -40 °C to - 86 °C |
| Energy consumption in 24h | 7.900 kWh / 24h |
| Total gross volume | 491 L |
| Maximum number of trays | 352 |
| Total net volume | 477 L |
| Cooling down time | 360 min |
| Warm-up time | 230 min |
| Technical data | |
| Model type | Scientific Ultra-Low-Temperature Freezer |
| GTIN | 9005382236550 |
| Energy consumption per year | 2,884 kWh/a |
| Energy consumption in 24h | 7.900 kWh / 24h |
| Gradient | 12.5 °C |
| Refrigerant | R 290 |
| Voltage | 230V ~ |
| Ambient temperature | +16°C to 32°C |
| Frequency | 50 Hz |
| Load-bearing capacity of shelf areas, freezer compartment | 50 kg |
| Exterior dimensions: | 196.6 / 92 / 108.2 cm |
| height/width/depth | 308.00 kg |
| Weight (with packaging) | 254.00 kg |
| Weight (without packaging) | Yes |
| SmartMonitoring-enabled | No |
| min./max. temperature recording | integrated, USB |
| Data logger | interface |
| Adjustable temperature range | -40 °C to - 86 °C |
| Control unit | Buttons |
| Malfunction: Warning signal | optical and acoustical |
| potential-free contact | Yes |
| Power failure alarm | immediately upon power failure for 72h |
| Maximum fluctuation | 7.2 °C |
| Gross volume freezing | 491 L |
| Net volume freezing | 477 L |
| Cooling down time | 360 min |
| Warm-up time | 230 min |
| Self-closing door | - |
| Door hinges | Right |
| Door hinge replacement | Not possible |
| Door seal | Replaceable |
| Height-adjustable feet | - |
| Castors | Yes |
| Type of castors | Castors with arrestor at the rear |
| Type of lock | mechanical |
| Max. height of the installation site | 2,000 m above sea level |
| Connector cable (length) | 2,800 mm |
| Side wall material | steel |
| Colour | white |
| Door material | Steel |
| Material of interior containers | stainless steel |
| Handle | Aluminium slimline door handle with integrated opening mechanism |
| Total gross volume | 491 L |
| Total net volume | 477 L |
