Northern Virgo Patient Monitor
Northern Virgo Patient Monitor may not be in stock. Please call us for ETA before purchasing.
Couldn't load pickup availability

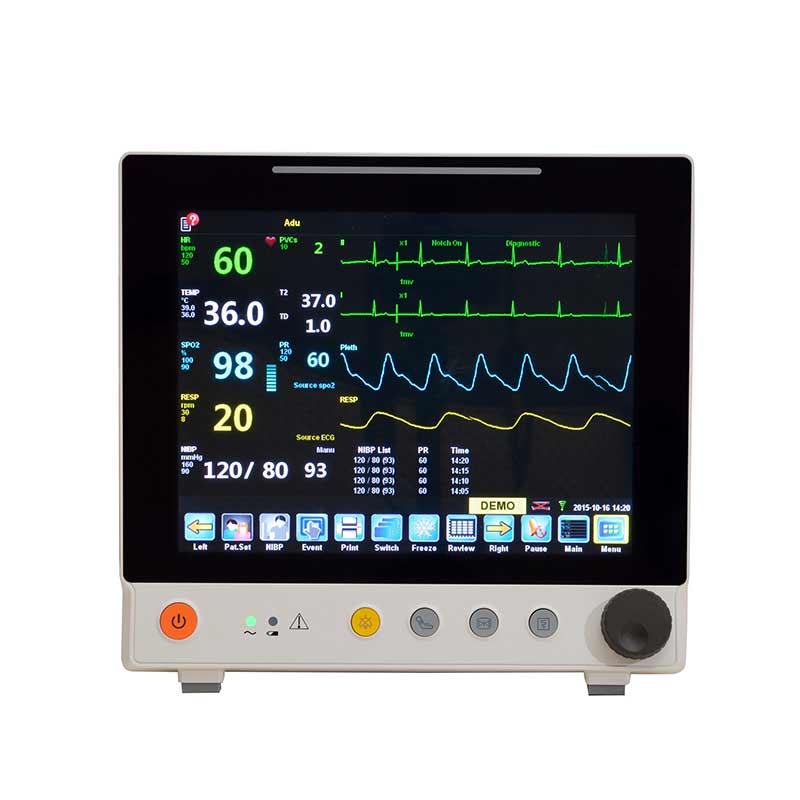

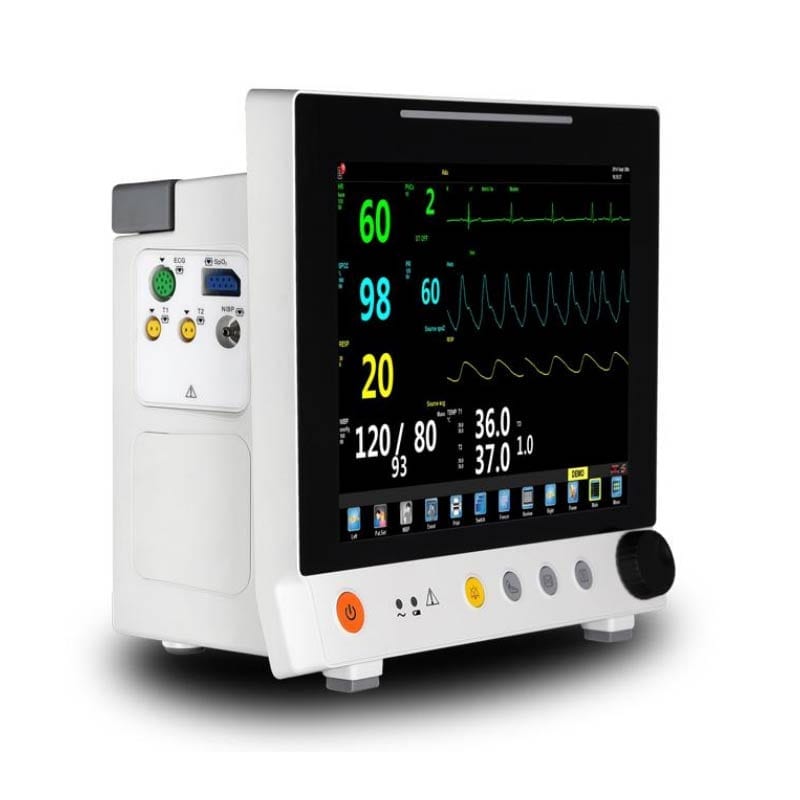

Introducing the Northern Virgo Anaesthesia Patient Monitor, a highly versatile and reliable monitoring solution designed for use in anaesthesia applications across adult, paediatric, and neonatal patients. Featuring a clear 12.1” colour TFT LCD screen, this monitor provides comprehensive monitoring capabilities in a compact and user-friendly package. It is engineered to adapt to various clinical settings, offering a flexible parameters configuration that ensures critical patient data is always at your fingertips.
Key Features:
- Versatile Patient Compatibility: Suitable for monitoring a broad range of patients, from adults to neonates, ensuring flexibility across clinical scenarios.

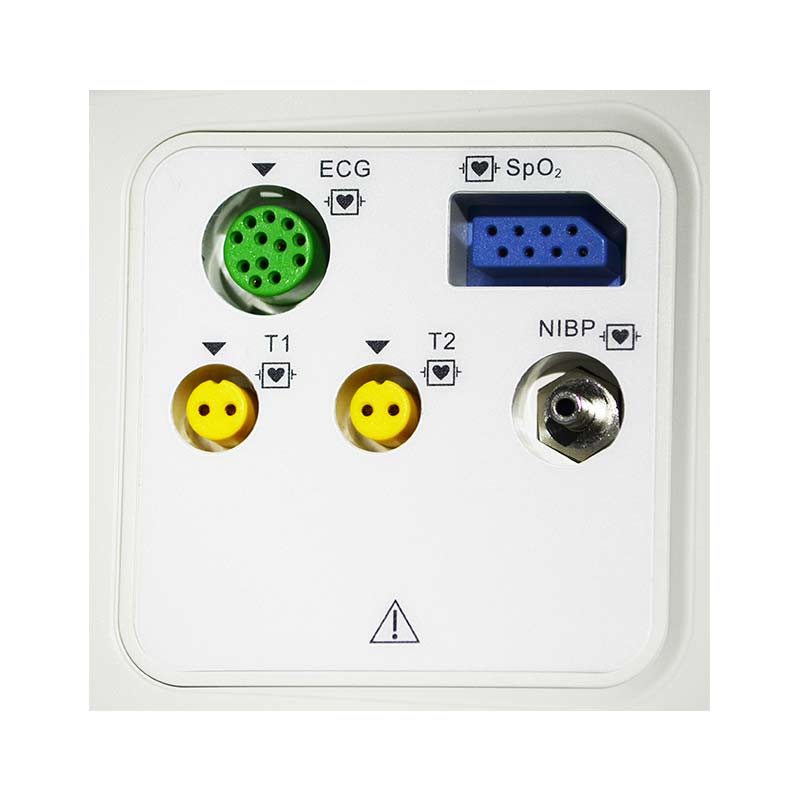

- Comprehensive Monitoring Suite: Includes standard configurations like 3 Lead ECG, HR, RESP, NIBP, SpO2, 2 Temp, and PR, providing a thorough overview of patient vitals.

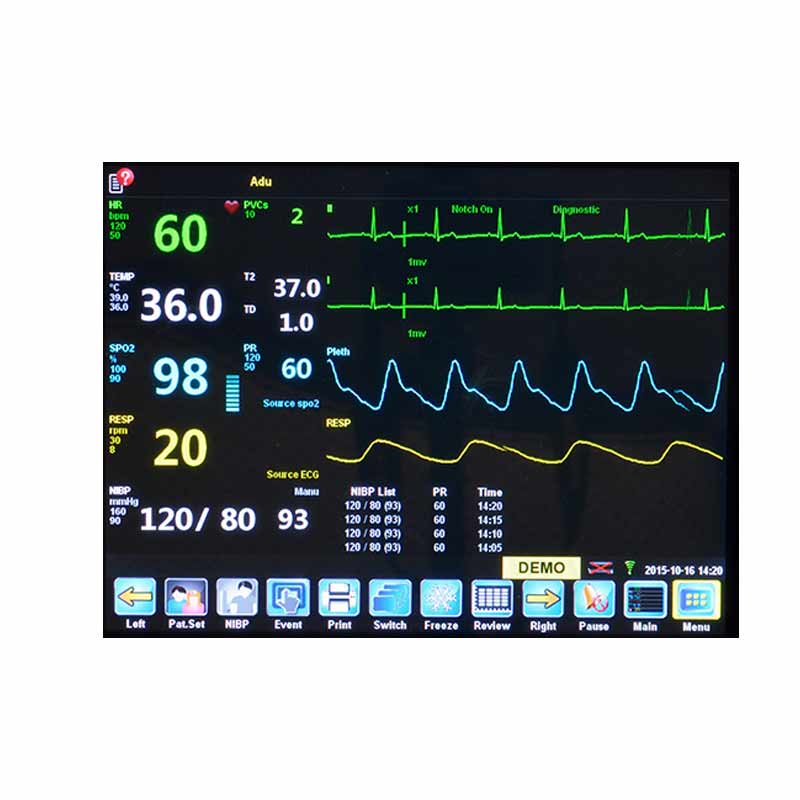

- Enhanced Data Visibility: Features a big font mode and a 12.1” colour TFT LCD screen for easy reading of vital signs.
- Detailed Data Review: Offers 8 hours of holographic waveform and 120 hours of graphical & tabular trend review with adjustable settings for comprehensive monitoring.
- Reliable Alert System: Equipped with an accurate alarming system to ensure timely notifications of patient status changes.
- Sustained Performance: Powered by a rechargeable high-capacity Li-ion battery for extended use.

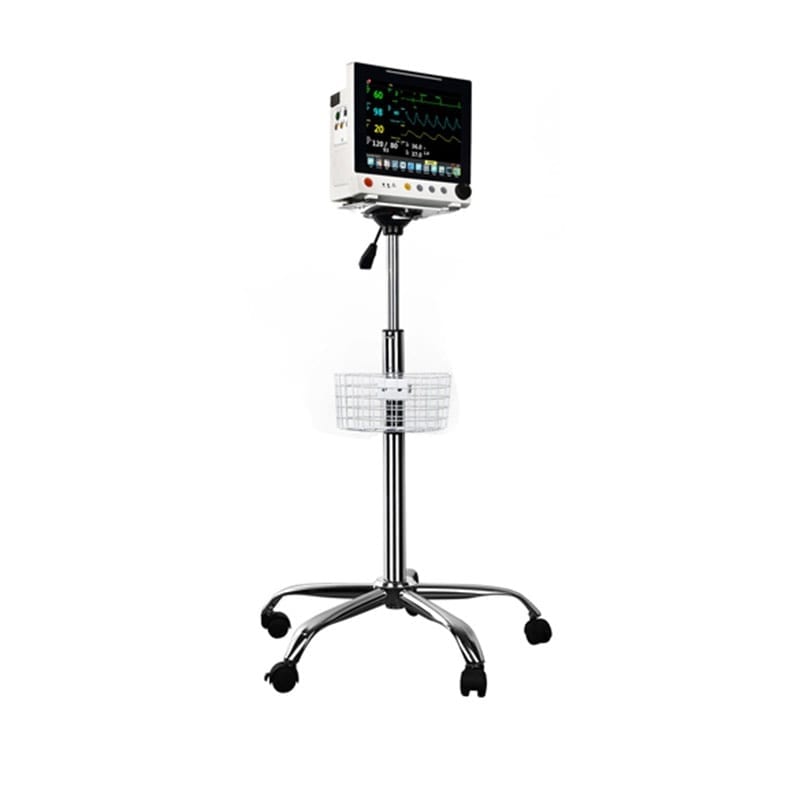

- Expandable Functionality: Optional enhancements include a thermal printer and trolley for improved mobility and convenience.
Physical Specifications |

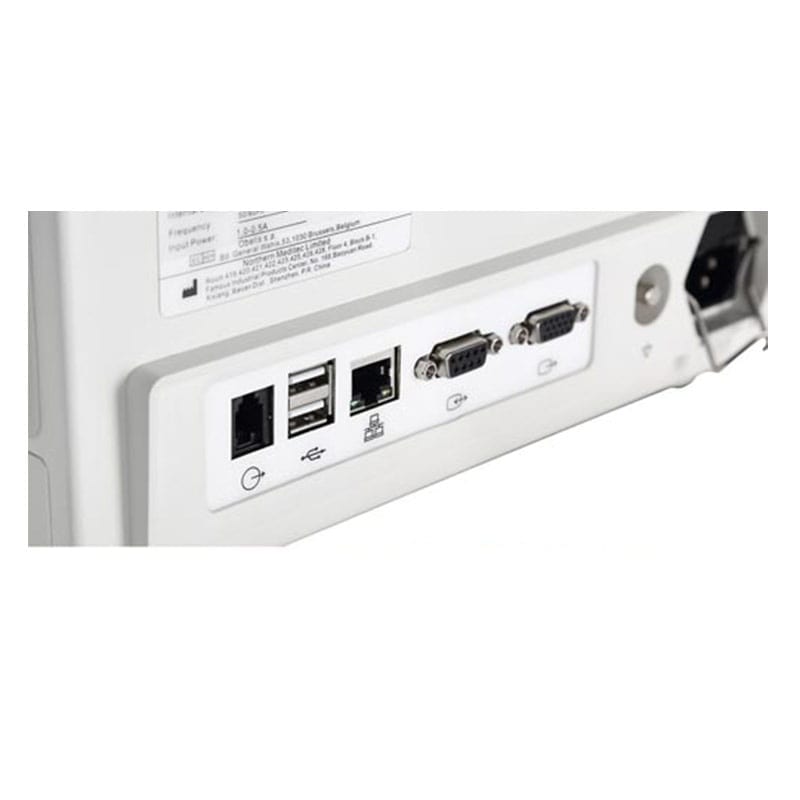

Display 12.1" TFT LCD screen Resolution: 800 x 600 (1024 x 768 optional) Number of traces: 8, up to 12 ECG waveforms Dimension: 310x292x174mm(WxHxD) Weight: < 4 kg under standard configuration LAN: 1 standard RJ45 port WLAN: IEEE 802.11b/g/n USB: 2 USB connectors |
ECG |
Lead type: 3-lead, 5-lead, 12-lead (optional) Bandwidth CMRR>100dB |
RESP |
Measurement method : Thoracic electrical bioimpedance |
TEMP |
Accuracy: ±0.1°C or ±0.2°F Measurement range: 0~50°C (41~122°F) Channel: Two channels Resolution: 0.1°C Parameters: T1, T2 and TD |
SpO2 |
Measurement range: 0-100% |
Masimo SET SpO2 (Optional) |
Measurement range : 0-100% Resolution: 1% Accuracy: ±2% (70-100%, Adult/Pediatric, non-motion, low perfusion); ±3% (70-100%, Neonate, non-motion); ±3% (70-100%, motion); 0-69%, unspecified Refreshing Rate: 1s |
Pulse Rate |
Range: 30~300 bpm Resolution: 1bpm Accuracy: ±2bpm (non-motion) ±5bpm (motion) Refreshing rate: 1s |
NIBP |
Measurement method: Automatic oscillometric method Measurement accuracy |
Additional info available on the brochure. E & OE.
