Northern Gemini Anaesthesia Patient Monitor
Northern Gemini Anaesthesia Patient Monitor may not be in stock. Please call us for ETA before purchasing.
Couldn't load pickup availability
Warranty Information
Warranty Information
2 Years

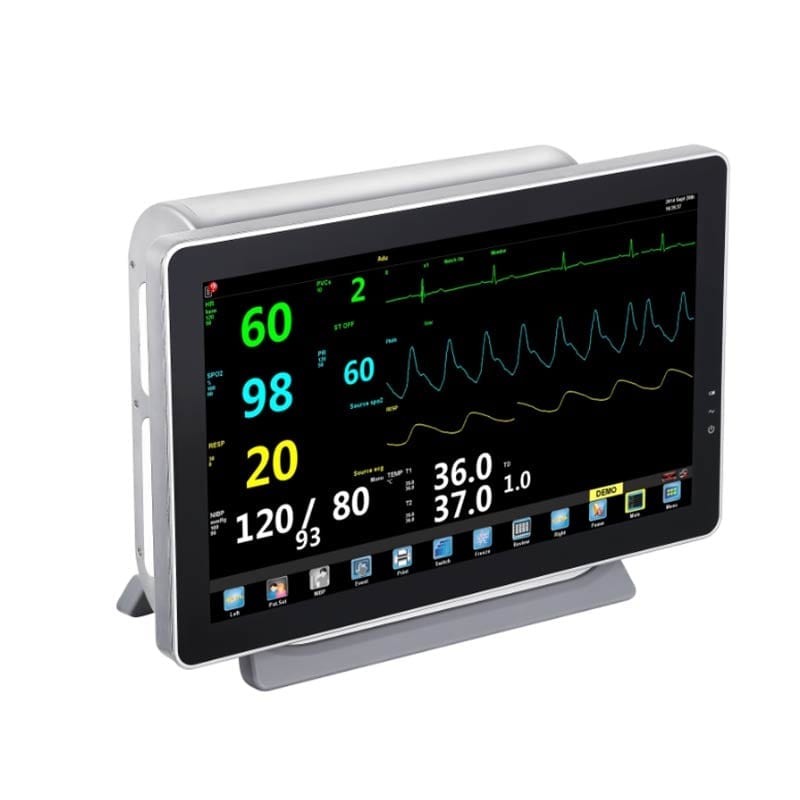

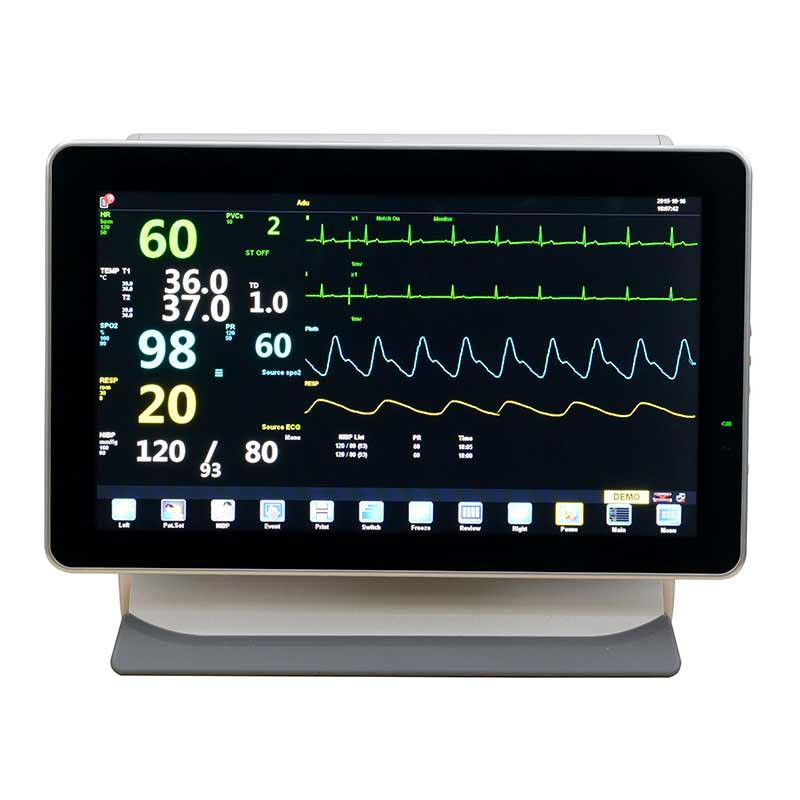

The Northern Gemini Anaesthesia Patient Monitor is a top-tier hospital patient monitoring solution, featuring a 15.6” colour TFT LCD touchscreen. Designed for versatility, it caters to adult, paediatric, and neonatal patients with ease. This monitor is customisable to fit a variety of clinical environments, offering an extensive range of vital sign monitoring and diagnostic tools. With the option to upgrade the screen size post-purchase and a suite of advanced features, the Gemini stands out as a comprehensive and adaptable choice for healthcare professionals.
Key Features:
- Wide Patient Range: Suitable for adult, paediatric, and neonatal patients, offering broad clinical application.

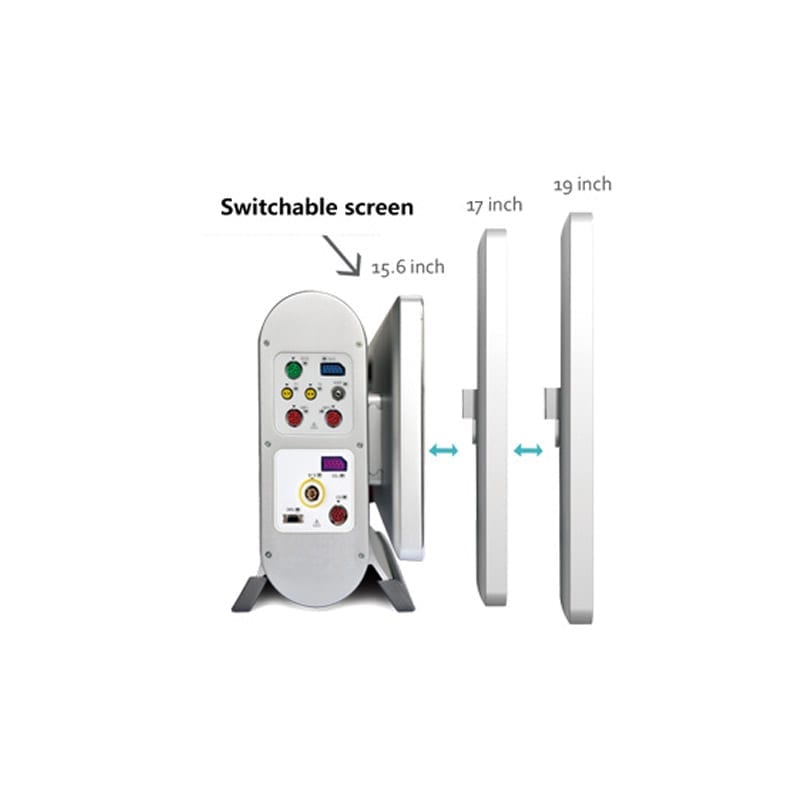

- Large Touchscreen Display: Comes with a 15.6” colour TFT LCD touchscreen, upgradable to 17" & 19" for enhanced visibility.
- Comprehensive Monitoring: Standard configuration includes 3 Lead ECG, HR, RESP, NIBP, SpO2, 2 Temp, and PR, along with pacemaker detection and ST & Arrhythmia analysis.

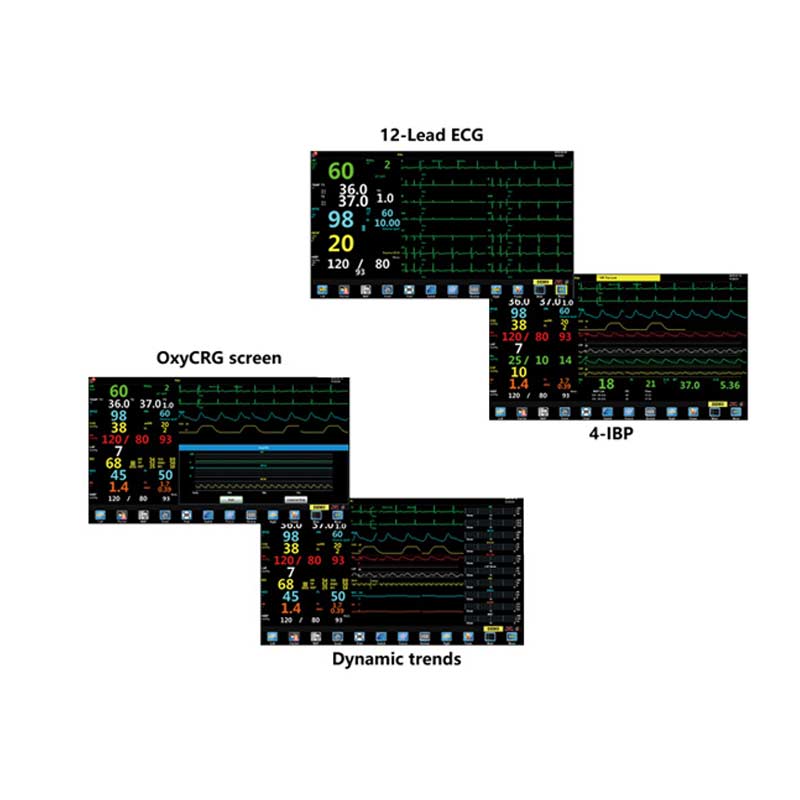

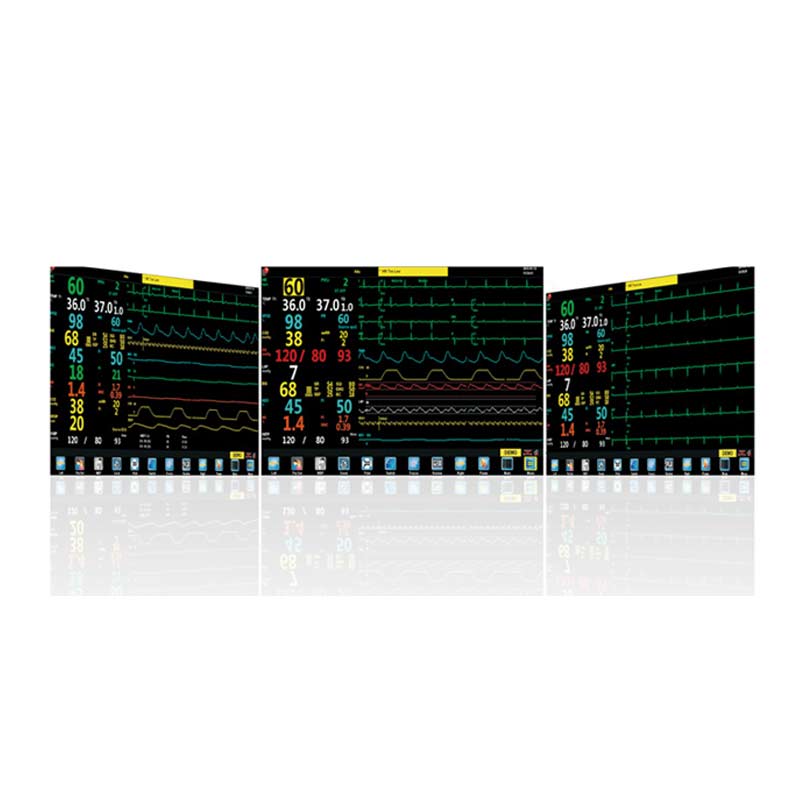

- Advanced Display Options: Supports up to 10 waveform displays with multi selectable screen options for optimal data presentation.
- Extended Data Review: Provides 8 hours of holographic waveform and 168 hours of graphical & tabular trend review with customisable settings.
- Reliable Alert System: Features an accurate alarming system to ensure immediate attention to patient changes.
- Optional Enhancements: Availability of thermal printer, trolley, wall mount, advanced SpO2 options, Dual IBP, EtCO2 monitoring, Multigas analysis, and more for comprehensive care.
- Connectivity Options: Offers WiFi, 3G/4G wireless connection, and central monitoring system integration for streamlined operations.
Physical Specifications |
Display Dimension Weight: <10kg under standard configuration |
ECG |
Lead type: 3-lead, 5-lead, 12-lead (optional) Bandwidth CMRR>100dB |
RESP |
Measurement method : Thoracic electrical bioimpedance |
TEMP |
Accuracy: ±0.1°C or ±0.2°F (without probe) Measurement range: 0~50°C (41~122°F) Channel: Two channels Resolution: 0.1°C Parameters: T1, T2 and TD |
SpO2 |
Measurement range: 0-100% |
Masimo SET SpO2 (Optional) |
Measurement range : 0-100% Resolution: 1% Accuracy: ±2% (70-100%, Adult/Pediatric, non-motion, low perfusion); ±3% (70-100%, Neonate, non-motion); ±3% (70-100%, motion); 0-69%, unspecified Refreshing Rate: 1s |
Pulse Rate |
Range: 35~300 bpm Resolution: 1bpm Accuracy: ±2bpm (non-motion) ±5bpm (motion) Refreshing rate: 1s |
NIBP |
Measurement method: Automatic oscillometric method Measurement accuracy |
Additional info available on the brochure. E & OE.
