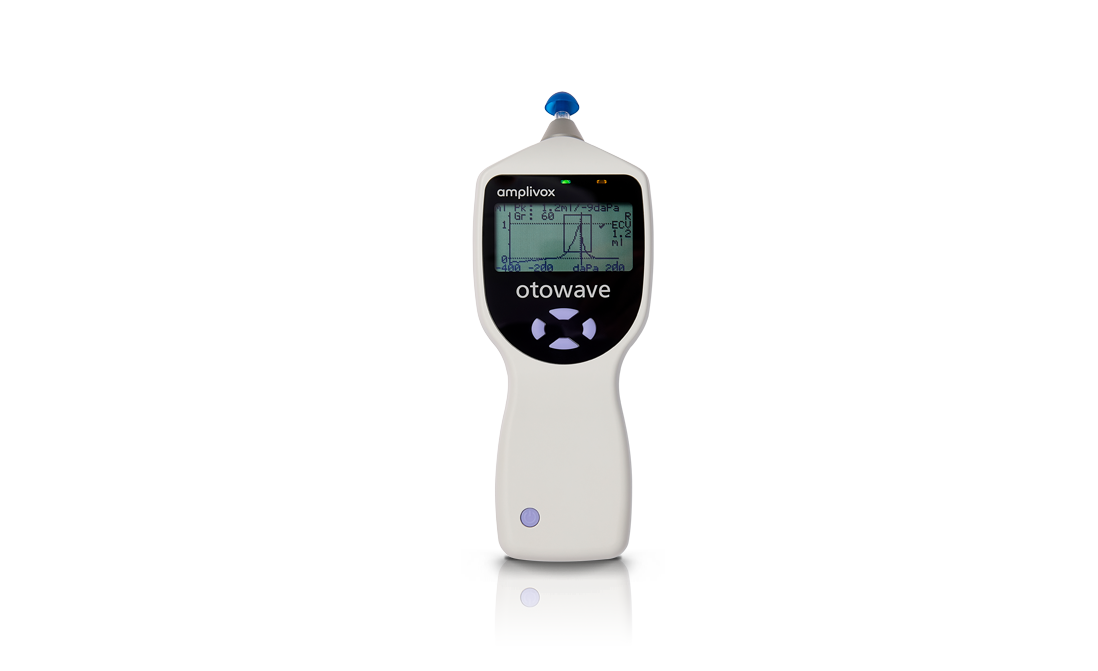

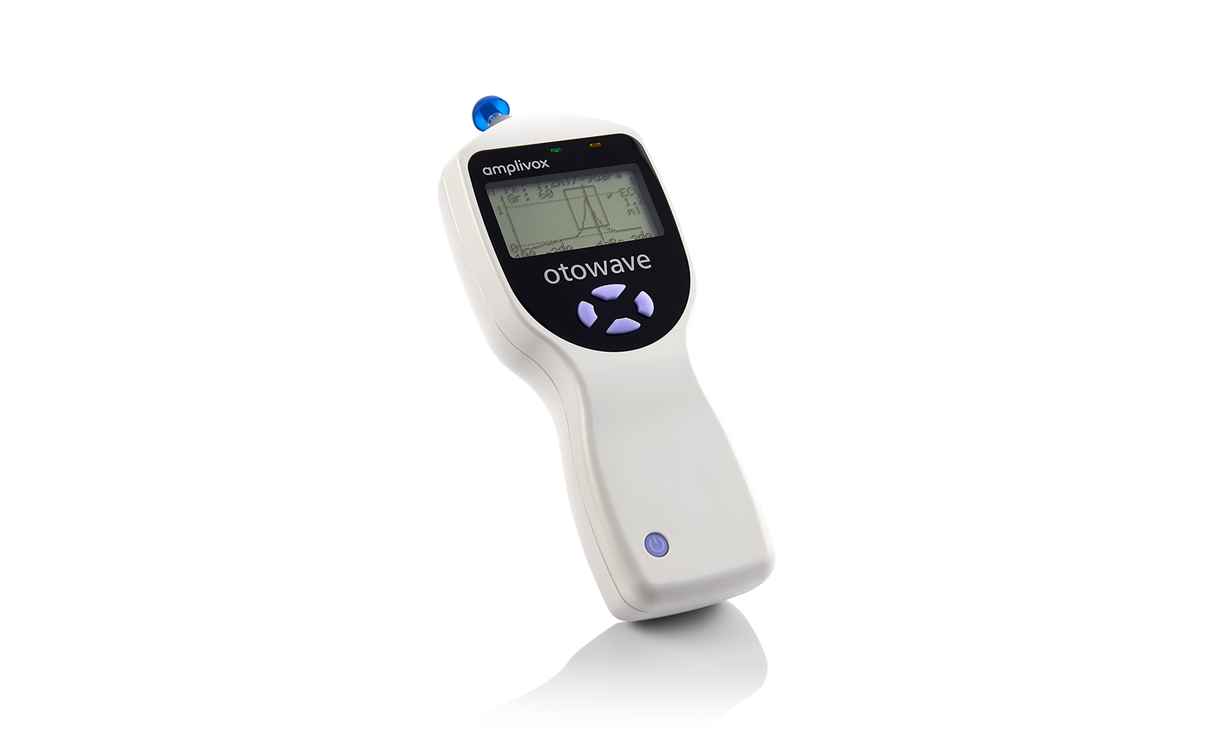

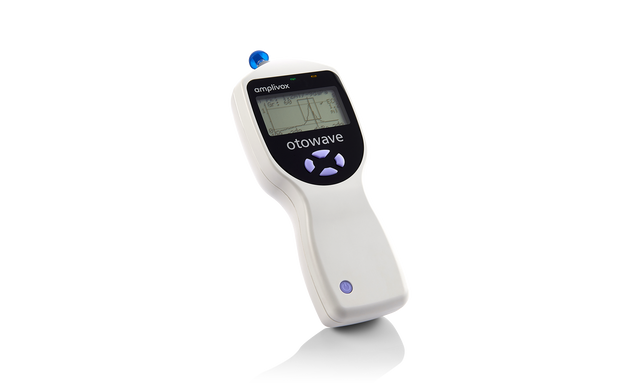

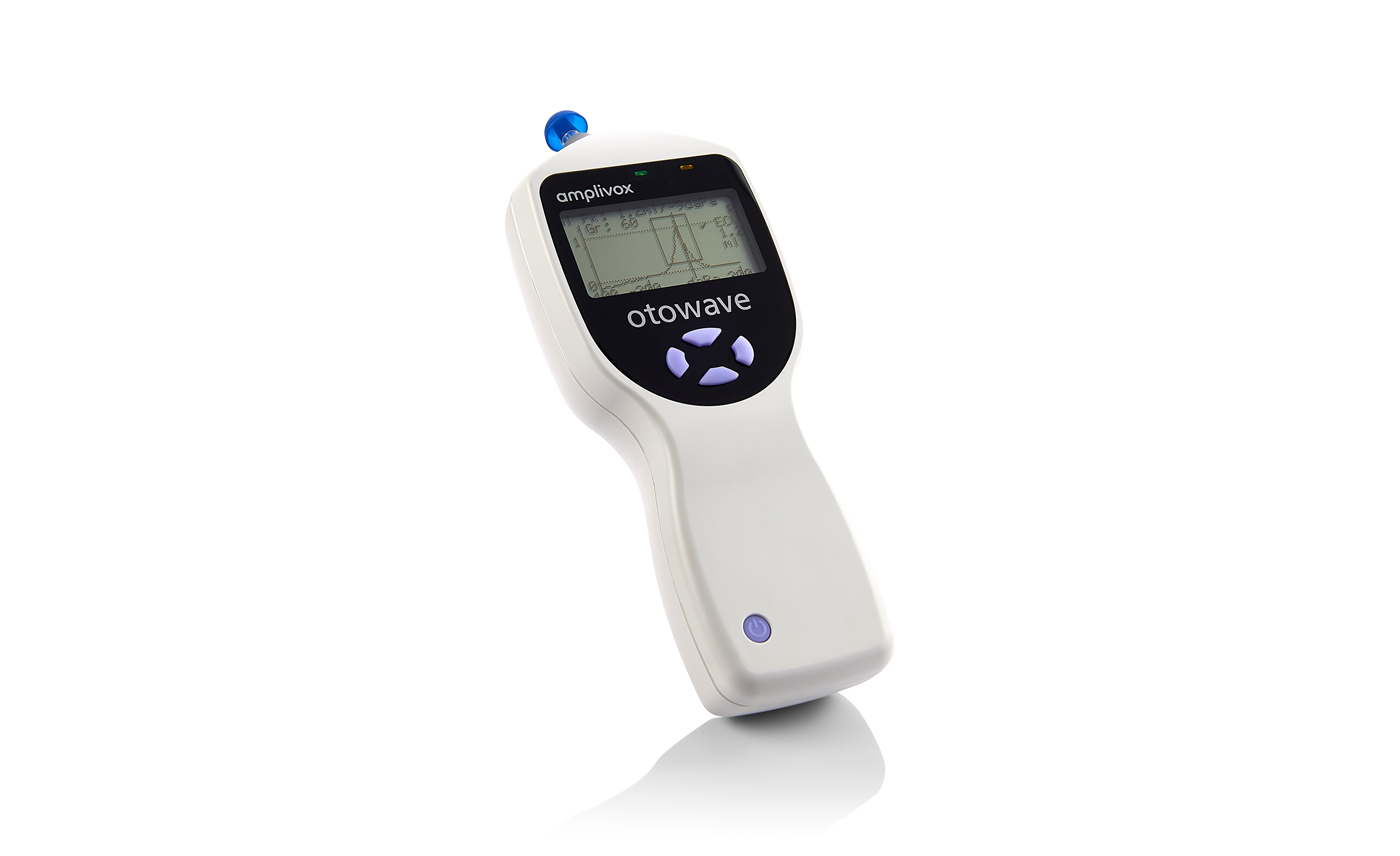

Amplivox Otowave 102 Portable Tympanometer
Amplivox Otowave 102 Portable Tympanometer - Otowave 102-1 may not be in stock. Please call us for ETA before purchasing.
($3,518.90 inc GST)
Couldn't load pickup availability
Warranty Information
Warranty Information
Model 102-1 - 2 Years. Model 102-4 - 3 Years.
Intuitive handheld screening tympanometers for reliable and accurate middle ear measurements. The efficiency and ease of use of the Otowave 102 can help to reduce
consultation times, making it the ideal choice for many audiology, ENT and hearing healthcare professionals.
Package Contents
- 1 x Amplivox Otowave Portable Tymopanometer (Model 102-1 or 102-4)
- 1 x Eartip Selection Box
- 4 x Test Cavities
- 4 x AA Batteries
- Spare Probe Tips and Gaskets
- 1 x Carry Case
- 1 x USB Stick (Manuals, Audiometry Module for Noah and Amplisuite Software)
Key Features
- Fast and accurate middle ear measurements
- Intuitive and ergonomic design
- Large LCD graphics display
- Programmable ipsilateral reflex tests
- Optional portable printer and PC interface
- Multiple language options
- Internal memory
- PC connectivity to Noah applications with optional iRDA port
- Compact, lightweight and portable
Data Management
The Otowave 102 Tympanometer features an internal memory function, allowing test results to be printed instantly or saved for future review using the included Amplisuite software.
It also provides seamless single-click integration with third-party EMR systems, including Noah, Auditbase, and OtoAccess®, enabling effortless transfer of data and results for enhanced workflow efficiency.
Ease-of-Use
The Otowave 102 is designed for simplicity and efficiency, displaying real-time test data on-screen for quick and intuitive operation. Ideal for fast-paced environments, screening tympanometry delivers results in just seconds with automatic pass/refer evaluations. Additionally, ipsilateral reflex tests can be seamlessly programmed into the protocol to run concurrently, streamlining the testing process.

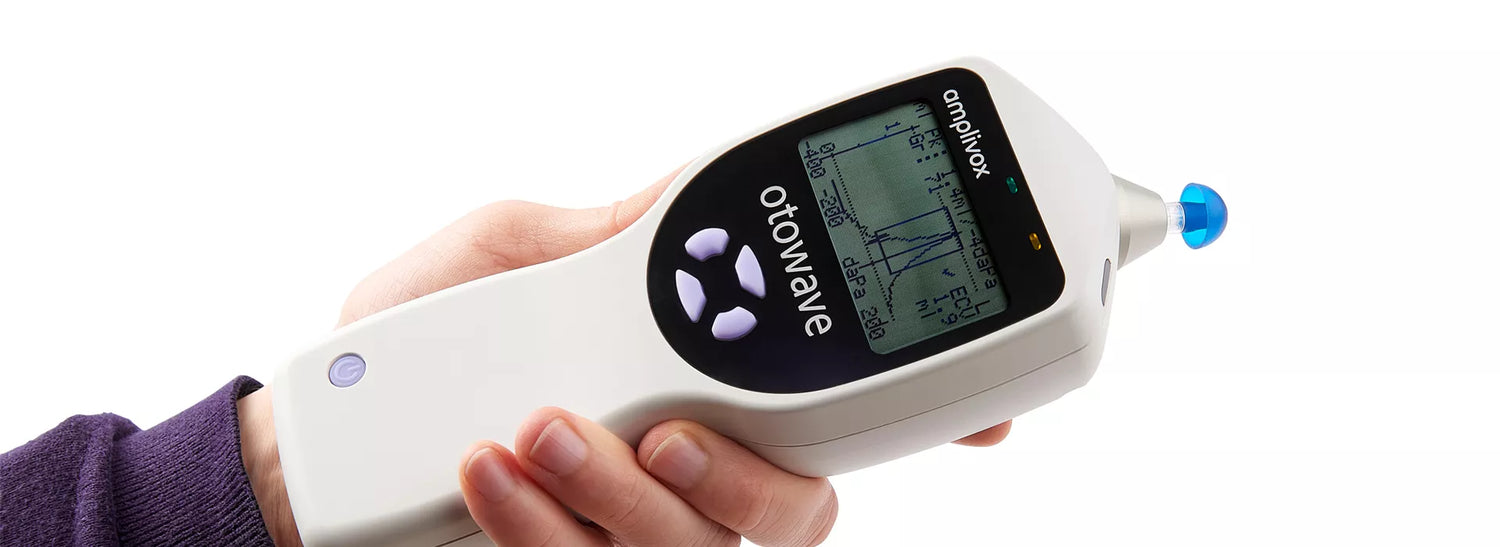

Ergonomic Design
Tests can be completed with confidence and accuracy due to the elegant shape which follows the contours of the hand, combined with a perfect weight distribution.
The Otowave 102 also provides an effortless testing experience with a large LCD screen for viewing the live tymp display, and simple four-key button layout.
Portability
Weighing only 380g (0.8lbs), the design allows for complete portability.
Powered by AA batteries which can be easily exchanged in the field, travelling audiologists can have confidence that they are providing reliable measurements in both mobile and clinic based audiological environments.
Optional Equipment
- Portable Printer
- Infra Red IrDA Cable (PC Connection Required)
- Rechargable Batteries
- Eartips
- OtoAccess Database
Tympanometry Measurements | |
Probe tone level | 226Hz ±2%, 85dB SPL ±2 dB |
Pressure range | +200daPa to -400daPa ±10daPa or ±10% (whichever is greater) |
Direction of sweep | Positive to negative |
Volumetric range | 0.2ml to 5ml ±0.1ml or ±5% (whichever is greater) |
Analysis performed | Compliance peak level, compliance peak pressure level, gradient and equivalent ear canal volume |
Reflex Measurements | |
Otowave 102-1 | 1kHz ±2% |
Otowave 102-4 | 500Hz, 1kHz, 2kHz, 4kHz ±2% user-selectable |
Reflex dB range | 85 to 100 dBHL ±3dB (5 or 10dB steps) Threshold measurement or single level |
Reflex measurement range | 0.01ml to 0.5ml ±0.01ml |
Analysis performed | Reflex maximum amplitude and pass/ fail at each test level |
Data Management | |
Internal database | 32 patient records |
Optional printer | Thermal printer |
Data transfer | Via Infra-red to Amplisuite, Noah, OtoAccess® and other EMR systems |
Languages | English, German, Italian, Spanish, French, Portuguese |
Physical Data | |
Power (battery pack) | 4x Alkaline AA or 4x NiMH (≥ 2.3Ah) rechargeable |
Dimensions (L x W x H) | 210 x 80 x 40mm |
Weight | 380g (including batteries) |
Safety and Standards | |
Safety | IEC 60601-1 (plus UL, CSA & EN deviations) |
EMC | IEC 60601-1-2 |
Performance | IEC 60645-5, Type 2 Tympanometer, ANSI S3.39, Type 2 |
CE Mark | Complies to EU Medical Device Regulation (MDR 2017/745) |
