Hatmed 23 Litre Essential Dry Vacuum Autoclave B & S Class with USB - P1 Q71B HAMP23SB
Hatmed 23 Litre Essential Dry Vacuum Autoclave B & S Class with USB - P1 Q71B HAMP23SB may not be in stock. Please call us for ETA before purchasing.
Couldn't load pickup availability
Warranty Information
Warranty Information
2 Years from the date of the invoice or 1,000 cycles, whichever comes first. The customer must have a 12 month maintainance performed by an accredited service agent.
Hatmed 23 Litre Essential Dry Vacuum Autoclave B & S Class with...

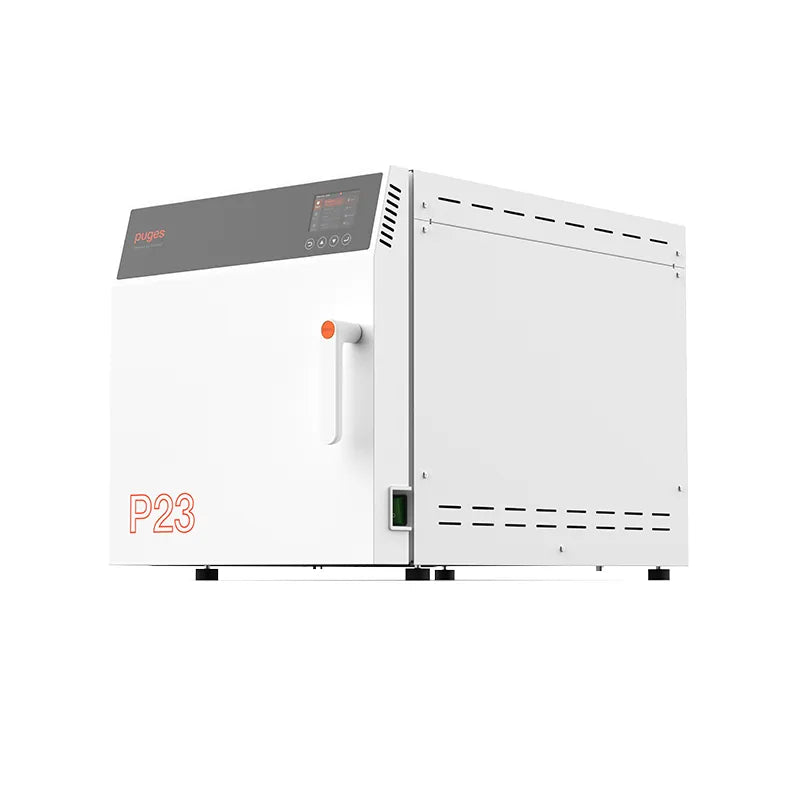

The Hatmed P23 provides an affordable, entry-level sterilization solution that is both safe and reliable. Designed for simplicity and ease of operation, it delivers excellent drying performance while offering essential features like record reprinting, emergency stop, and emergency door opening to meet your daily needs efficiently.
Fastest B Class Cycle Time: 32 minutes
Fastest S Class Cycle Time: 23 minutes
Automatic Cycle and Test Schedule Start
The user can schedule any cycle to start at a specific time, or set up consecutive tests to run automatically back-to-back. For example, a vacuum test and a helix test can be configured to run in sequence without manual intervention.
High Quality Imported Parts
The HAMP23SB boasts reliable and high-quality parts which can achieve a vacuum level of -0.90bar, ensuring superior sterilization and maximum preservation for your instruments.
Patented Independent Steam Generator
Constructed from durable stainless steel that is highly resistant to corrosion, this innovative component is specifically designed to produce pure steam and protect delicate instruments. Its unique structure guarantees excellent efficiency and superior steam quality.
Optimal Drying Results
The air-cooling autoclave extracts air from hollow or porous loads, and fills them with saturated steam, which ensures maximum steam penetration throughout the entire load. This achieves optimal drying results, even for cotton textile loads.
Intelligent Load Detection
By utilising intelligent load detection, the system can precisely calculate the required time, water, and power based on the amount of load to be sterilised. This ensures efficient sterilisation, saves energy, and conserves environmental resources.
Water Quality Monitor
The water quality detection system triggers an alarm and halts the sterilisation cycle to prevent impurities from damaging the equipment.
Label Printing
An optional Hatmed barcode label sticker and/or cycle record external printer can be attached. These labels can be attached to the packaging for convenient viewing and to prevent package expiration.
More Features
- 7 Preset Programs: cycle parameters can be customised to meet various specific needs.
- 2 Customisable Programs
- 3 Test Programs
- 3-Times Pre-Vacuum Phase: quickly extracts cold air from hollow instruments to improve the penetration of steam. This ensures quality sterilisation and prevents damage to the device through the implementation of fast and uniform heating.
- Power Outage Protection: if the autoclave is powered off for any reason, such as a power failure, the inner chamber recovers to normal pressure. This allows the loads to be taken out safely via the emergency door button, or by waiting for electricity restoration.
- Safety Lock
-
Emergency Stop
- Intelligent Error Detection
- Automatic Update with USB Drive
- Colour LCD Display
Optional Trays

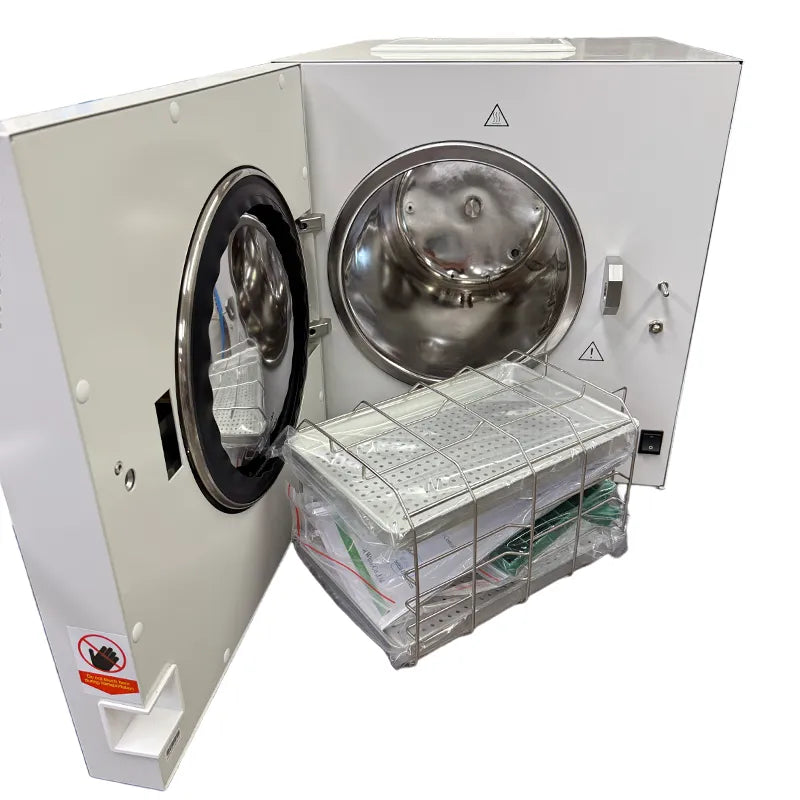

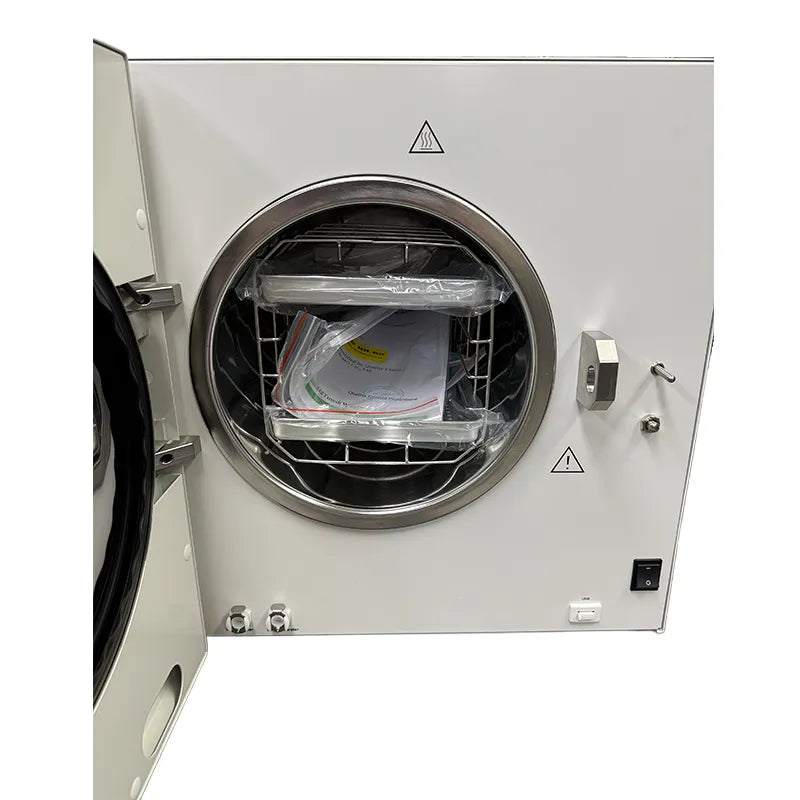

The HAMP23SB comes default with a set of 2 trays. If you need more trays, additional trays can be purchased separately.
External and Chamber Dimensions
| Australian SKU | HAP23SB |
| Hatmed Model Number | Q71B |
| Chamber Capacity | 23 Litre |
| Chamber Dimensions | 250mm x 460mm |
| Chamber Material | 304 Stainless Steel |
| External Dimensions | 660mm(D) x 460mm(W) x 500mm(H) |
| Minimum Bench Width | 600mm(D) x 465mm(W) (with door overhang) Can sit sideways on small benches |
| Weight | 50kg |
| External Case Material | Carbon Metal White Powder Coat Cover |
| Display Type & Size | LCD Display |
| Door Mechanism | Manual |
| Power Requirements | 10A Outlet 240v 50Hz 2400w |
| Included Supports | 2x Trays (425mm x 186mm) and Support Rack |
| Cycle Recording to USB | Included |
| Optional External Printer | Printer for Barcode Label Stickers (HAA4290-00011) |
| Printer for Cycle Records (HAA429000003) | |
| Optional Tray | HAA8130-00017: 23L Tray |
| Warranty | 24 Months or 1,000 Cycles |
| Fastest B Class Cycle Time | 32 minutes |
| Fastest S Class Cycle Time | 23 minutes |
