MedCaptain HP60 1 Channel Infusion Pump
MedCaptain HP60 1 Channel Infusion Pump may not be in stock. Please call us for ETA before purchasing.
($2,640.00 inc GST)
Couldn't load pickup availability

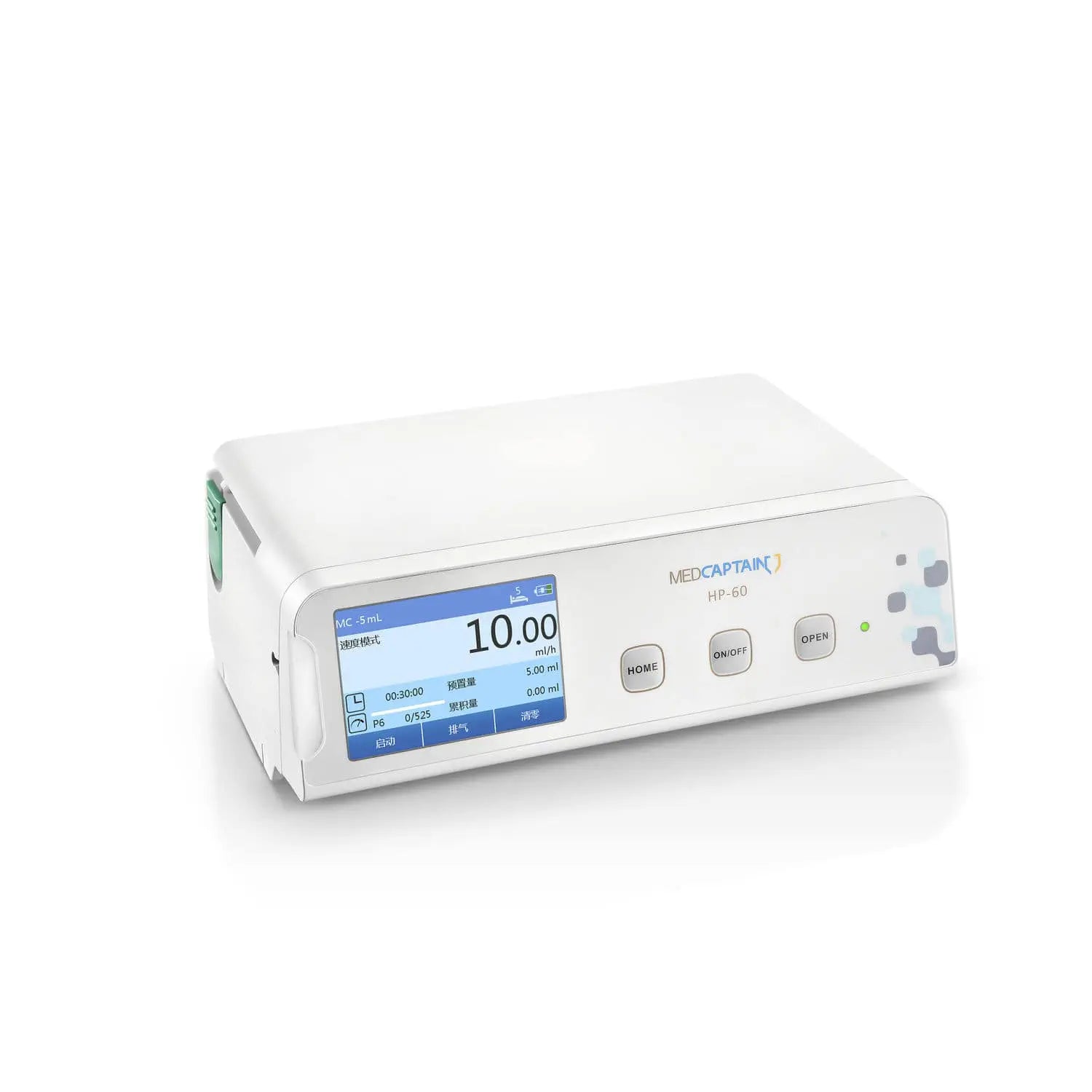

Introducing the MedCaptain HP60 1 Channel Infusion Pump, a state-of-the-art medical device designed to streamline and secure the infusion process. Engineered with both the healthcare professional and patient in mind, this infusion pump integrates advanced technology with user-friendly features to deliver a superior infusion therapy experience.
Key Features:
- One-Step IV Set Installation: The HP60 revolutionizes IV set loading with its patented single-step method, greatly simplifying the setup process. This innovative approach not only saves time but also ensures that the infusion tube installation is safe and convenient for medical staff.
- Tube Status Identification: With the ability to automatically identify the tube status, the HP60 enhances safety by ensuring that the infusion setup is correct and secure, minimizing the risk of errors in the infusion process.
- Anti-Bolus System: The pump features a sophisticated anti-bolus system, significantly reducing the bolus after occlusion release to a maximum of 0.2ml. This safety feature is paramount in protecting patients by preventing the sudden release of medication, making the HP60 the safest option for patient care.
- Self-Adapting Peristaltic System: The HP60's self-adapting peristaltic system automatically adjusts to each IV set used, employing an innovative infusion method that guarantees both the accuracy and safety of the infusion. This adaptability ensures that the pump can deliver precise medication dosages across a wide range of infusion therapies.
- Versatile Therapy Application: Designed to accommodate different therapeutic needs, the HP60 allows for various therapies to be administered using a single pump. This versatility makes it an invaluable tool in diverse clinical settings, from intensive care units to outpatient facilities.
- Enhanced Accuracy with Medcaptain IV Sets: When used in conjunction with Medcaptain brand silicon IV sets, the HP60 achieves exceptional infusion accuracy of less than 3%. This precision is crucial for administering exact dosages of medication, particularly in treatments that require strict dosage control.
- Extended IV Set Lifetime: The pump is designed to prolong the lifetime of IV sets, which can reach up to 96 hours even under high infusion rates. This durability not only reduces waste but also ensures continuous, reliable infusion therapy for extended treatment periods.
The MedCaptain HP60 1 Channel Infusion Pump is a breakthrough in medical infusion technology, offering unparalleled accuracy, safety, and convenience. Its comprehensive set of features addresses the critical needs of modern healthcare delivery, ensuring that patients receive the best care possible while simplifying the workflow for healthcare providers. With the HP60, MedCaptain continues to set new standards in infusion therapy, reinforcing its commitment to innovation and patient safety.
Model | HP-60 |
Intended Use | liquid drug blood transfusion total parenteral nutrition enteral nutrition for the adult, pediatric, and neonatal patients |
Infusion System | Peristaltic |
Dimensions | W214xH75xD142 mm |
Weight | ~1.4kg (including battery) |
Display | 3" LCD with a Resistive Touchscreen |
480 × 320 pixels | |
Brightness | 10 levels adjustable |
Background | 7 colours selectable |
Screen Lock | Manual & Auto OFF, 15s, 30s, 1min, 2min, 5min, 10min, 30min |
System Volume | 12 levels |
Classification | Type CF, Defibrillation-proof, Class I |
Ingress Protection | IP33 |
Bracket Door | Manual & Electric |
Power Supply | AC power supply: 100-240V AC, 50/60Hz, 45VA External DC power supply: 12V, 2.5A |
Battery | Built-in lithium battery: 10.8V, 3000mAh |
Battery Performance | ≥ 10 hours |
Battery Charging | ≤4 hours in power-off state |
Infusion Set Brand Compatibility | All disposable infusion sets conforming to the ISO 8536-4 or ISO 8536-8 standard |
Anti Free-Flow Clamp | - |
Working Modes | Rate, Time, Weight, Sequence (10 groups?), Drip, Trapezia, Loading Dose and Micro Mode |
VTBI | 0.10 - 9999.99ml (minimum increment: 0.01ml) |
- | |
Micro Mode: 0.1-1000ml | |
Total Volume Display | 0 - 9999.99ml (minimum increment: 0.01ml) |
Rate Range | 0.10-2000ml/h(20d/ml) 0.1-667ml/h(60d/ml) |
0.10-99.99ml/h (minimum increment: 0.01ml/h) 100.0-999.9ml/h (minimum increment: 0.1ml/h) 1000-2000ml/h (minimum increment: 1ml) | |
Drip mode: 0.1-666 dot/min | |
Micro mode: 0.1-100ml/h | |
Time Range | 00:00:01 - 99:59:59 (minimum increment: 1s) |
Infusion Accuracy | HP-60: ±5% Infusion inaccuracy ±3% (When the brand of infusion set is MC-SI) HP-60 (3 in 1): ±5% (MC-PVC) ±3% (MC-SI) |
Drip Accuracy: - | |
Purge | Manual & Auto: 0.10-2000ml/h |
Bolus VTBI | 0.10 - 999.90ml (minimum increment: 0.01ml) |
Bolus Range | Manual bolus / Semi-auto bolus / Auto bolus: 0.10-2000ml/h |
Anti-Bolus (Auto Pressure Release) | ≤ 0.2 ml |
KVO Rate Range | 0.10 - 30.00ml/h (minimum increment: 0.01ml/h) |
Patient Weight | Weight mode: 0.1-300kg |
Drug Amount | 0.01 ~ 9999.99 |
Amount Unit | ug, mg, g, ng, mIU, IU, kIU, EU, mol, mmol, kcal, mcal, cal, mEq |
Drug Concentration | 0.01 ~ 9999.99 |
Con Unit | ug/ml, mg/ml, g/ml, ng/ml, mIU/ml, IU/ml, kIU/ml, EU/ml, mol/ml, mmol/ml, mcal/ml, cal/ml, kcal/ml, mEq/ml |
Dose Rate | 0.01 ~ 9999.99 |
Dose Rate Unit | x/min, x/kg/min, x/h, x/kg/h, x/24h, x/kg/24h, x/m2/min, x/m2/h, x/m2/24h (x may be ng, ug, mg, g, mIU, IU, kIU, EU, mmol, mol, mcal, cal, kcal, and mEq) |
Lighting Lamp | × |
Continuous Titration | √ |
Patient Information Management | √ |
Drop Sensor | √ (optional) |
Nurse Call | √ (optional) |
Bar Code Scanner | √ (optional) |
Therapy Record | 20 therapies recorded |
Drug Library | 5000 drugs & 30 profiles Dose Control |
Standby Mode | √ |
Night Mode | √ |
Wired Connection Module | √ |
Wifi Function | √ (optional) |
External Connection | HP & Philips connection cable (optional) |
Interface/Ports | RJ45 network port: 10/100 Mbps self-adaptive Ethernet port. USB3.0 port: Used to connect to the nurse call button. USB2.0 port: Used to connect to the barcode scanner or infusion workstation for communication through the RS-232 protocol, and also used for DC power input. |
Alarm Types | Infusion Near End, Infusion End, Patient Side OCCL, Fluid Side OCCL, BAT Low, BAT Empty, No Battery, No AC Power, Air Bubble In Line, No Drop Sensor, No Drip, Too Many Drops, Too Few Drops, Reminder Alarm, Standby End, Pre OCCL, Infusion End KVO Start, KVO End and Relay Failed |
Alarm Volume | 45 - 85dB |
Logs (Records) | 3000 events |
No Operation Time | 1 - 10min Default: 2 mins |
Near Completion Time | 1 ~ 240 min (adjustment step: 1 min) Default: 3 mins |
Bubble Detection | Single Bubble: 25, 50, 100, 200, 300, 500, and 800 (ul) |
Cumulated Bubbles: 100ul/15min, 200ul/15min, 400ul/15min, 500ul/15min, 600ul/15min, 800ul/15min, and 1000ul/15min | |
Alarm accuracy: ±15ul or ±20% (whichever is greater) | |
Pressure Sensor | Dual pressure sensor |
Dynamic Pressure Display (DPS) | √ |
Occlusion (OCCL) Level | Patient side occlusion: 150~975mmHg 12 levels selectable. The default occlusion level is level 6. Fluid side occlusion: supported |
±145mmHg | |
Empty Container Sensitivity | - |
Operating Conditions | Temperature: 5°C~40°C Humidity: 15%~95% RH, non-condensing Atmospheric pressure: 57.0~106.0kPa |
Operating Altitude | ≤ 3000m |
Storage Conditions | Temperature: -20°C~+55°C Humidity: 10%~95% RH, non-condensing Atmospheric pressure: 22.0~107.4kPa |
Service Life | 10 Years |
MRI Compatible | × |
